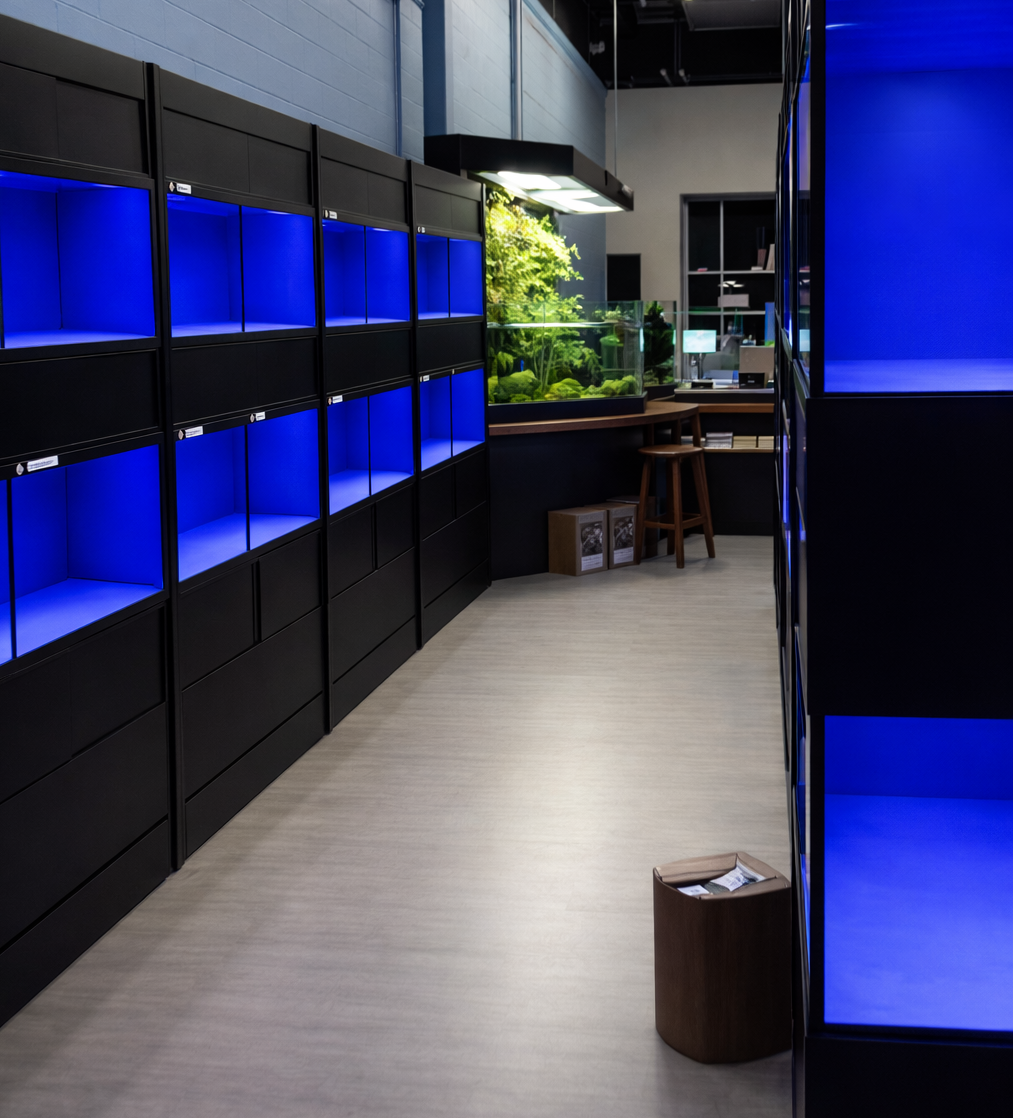

Coral | Invertebrate | Live Rock | Marine Fish Aquarium Retail Racks

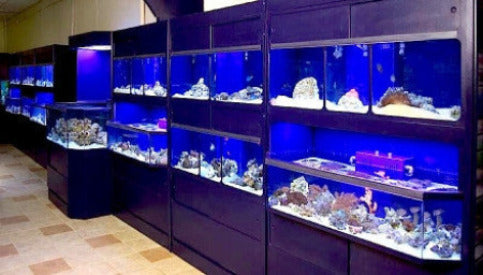

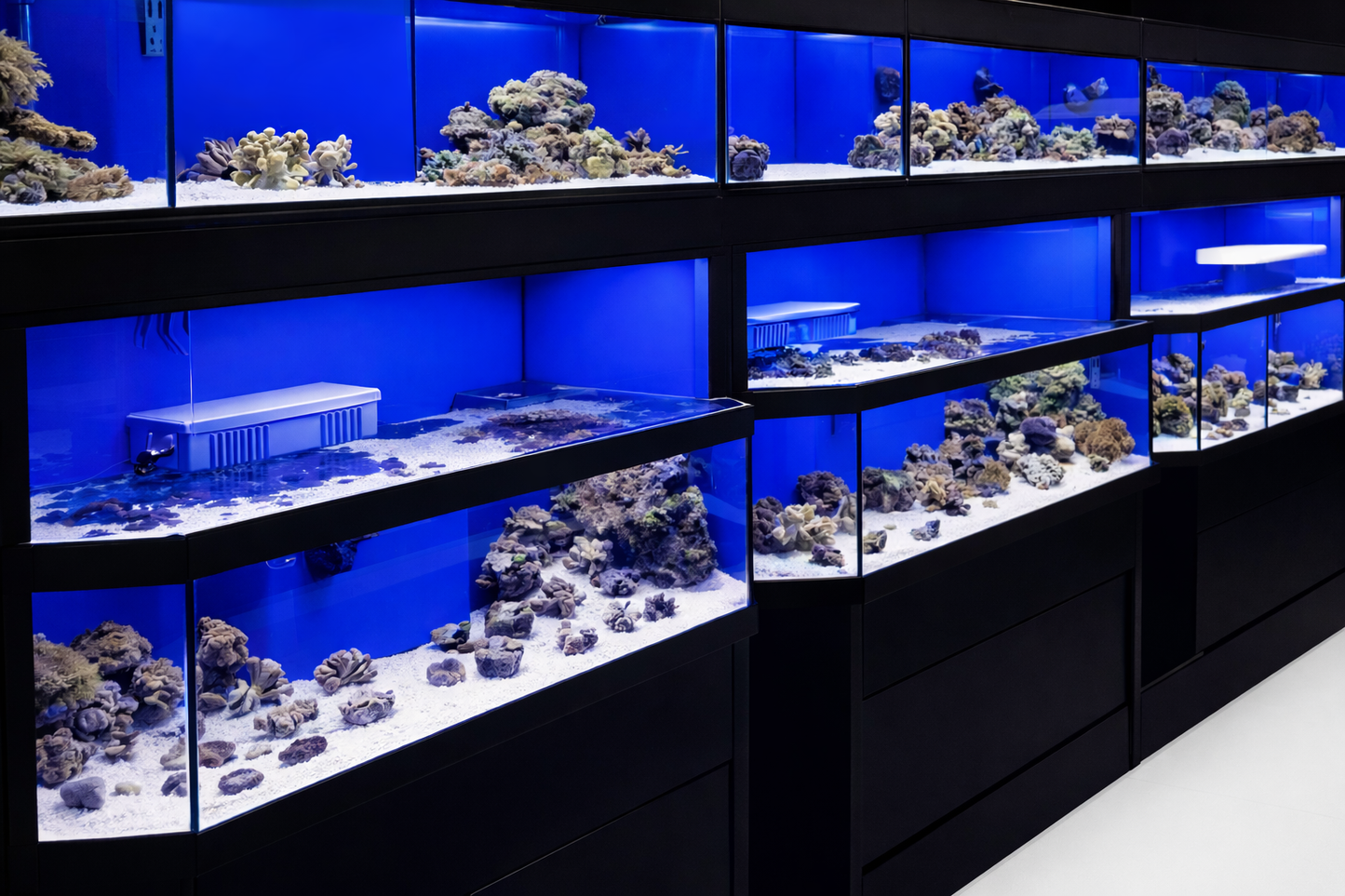

Our commercial marine retail rack systems are built for aquarium stores that demand reliability, stability, and low maintenance. Designed to maximize water capacity and minimize operational complexity, these racks provide dependable performance in high-traffic retail environments while supporting healthy livestock and clean, professional presentation.

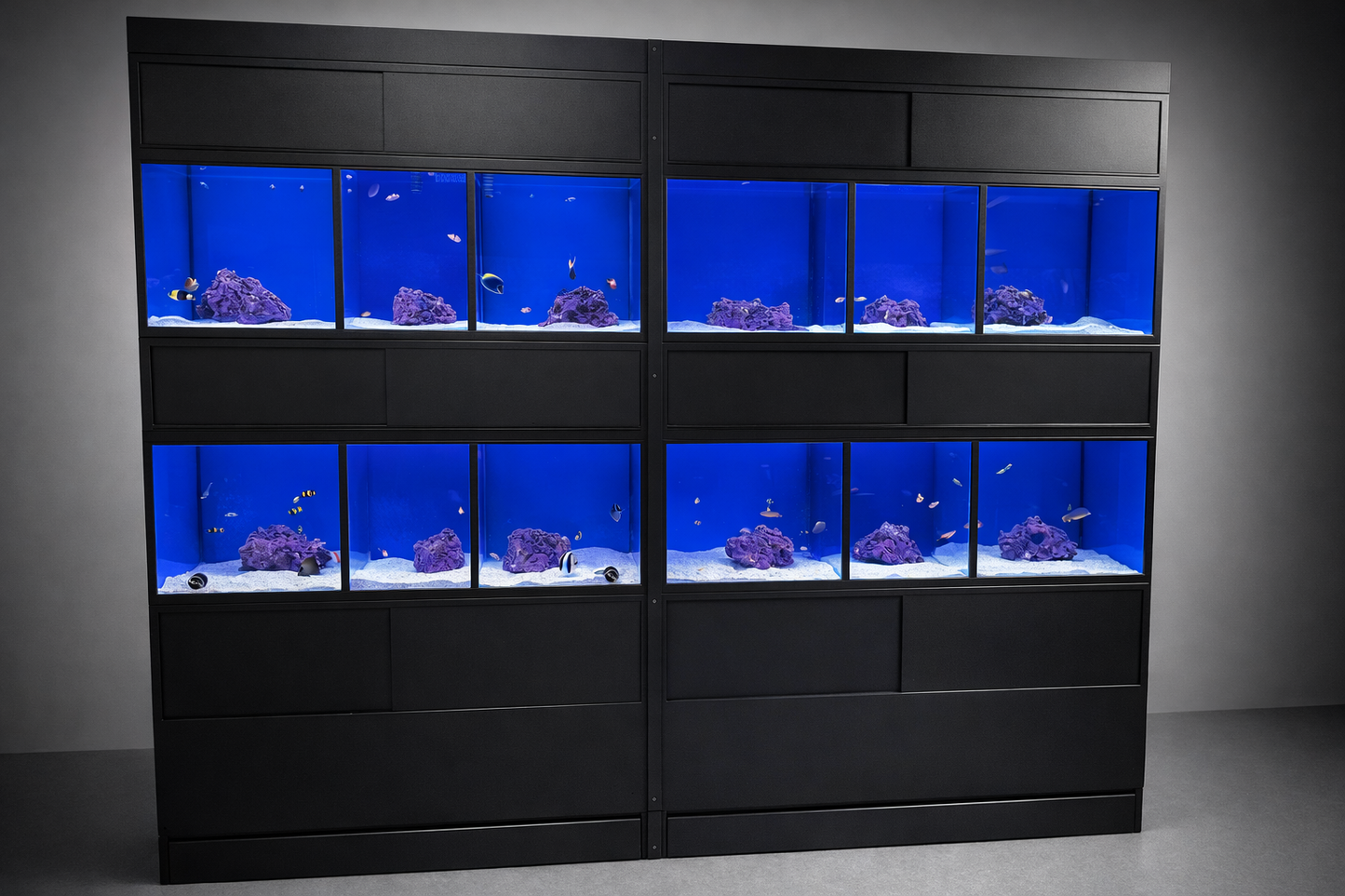

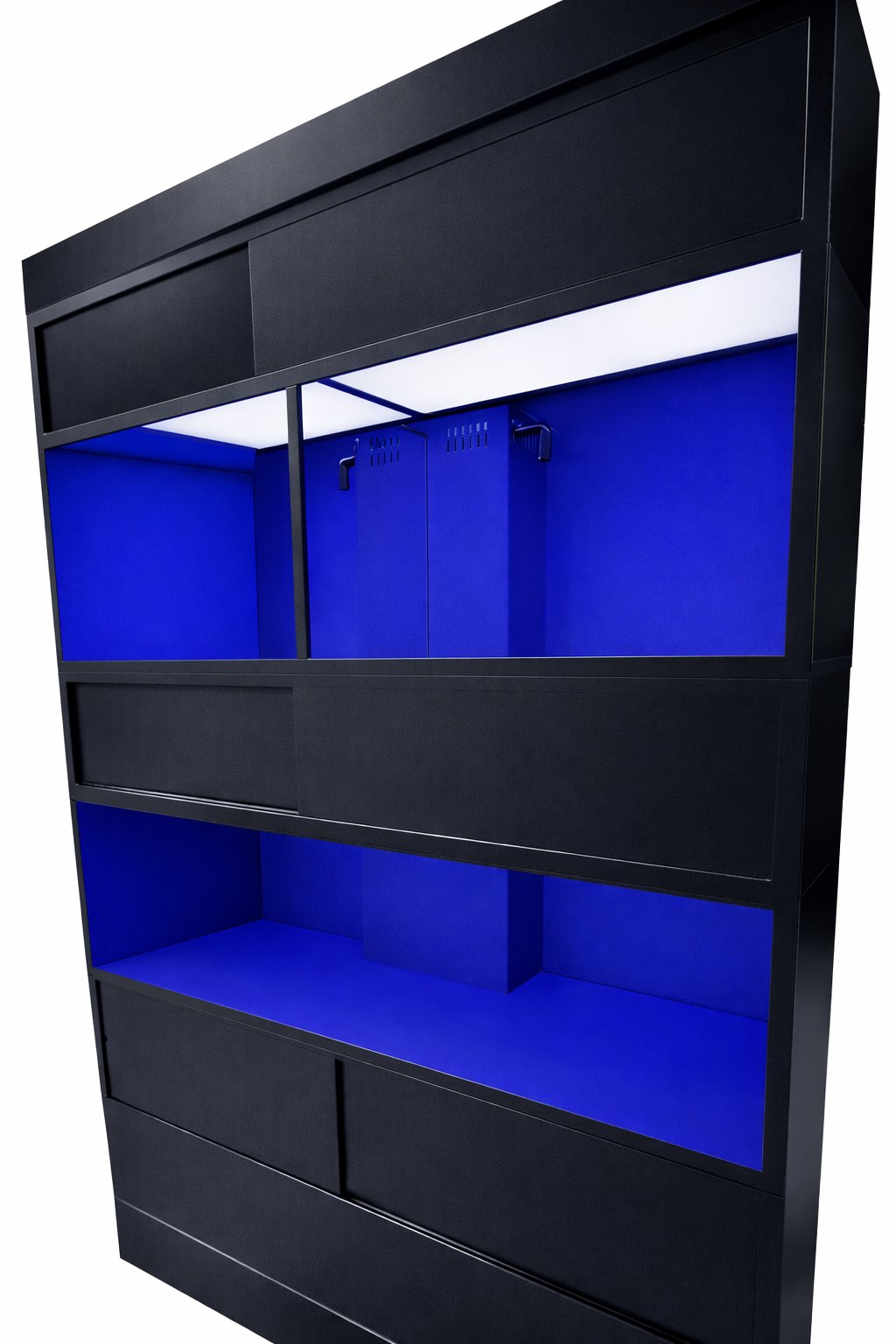

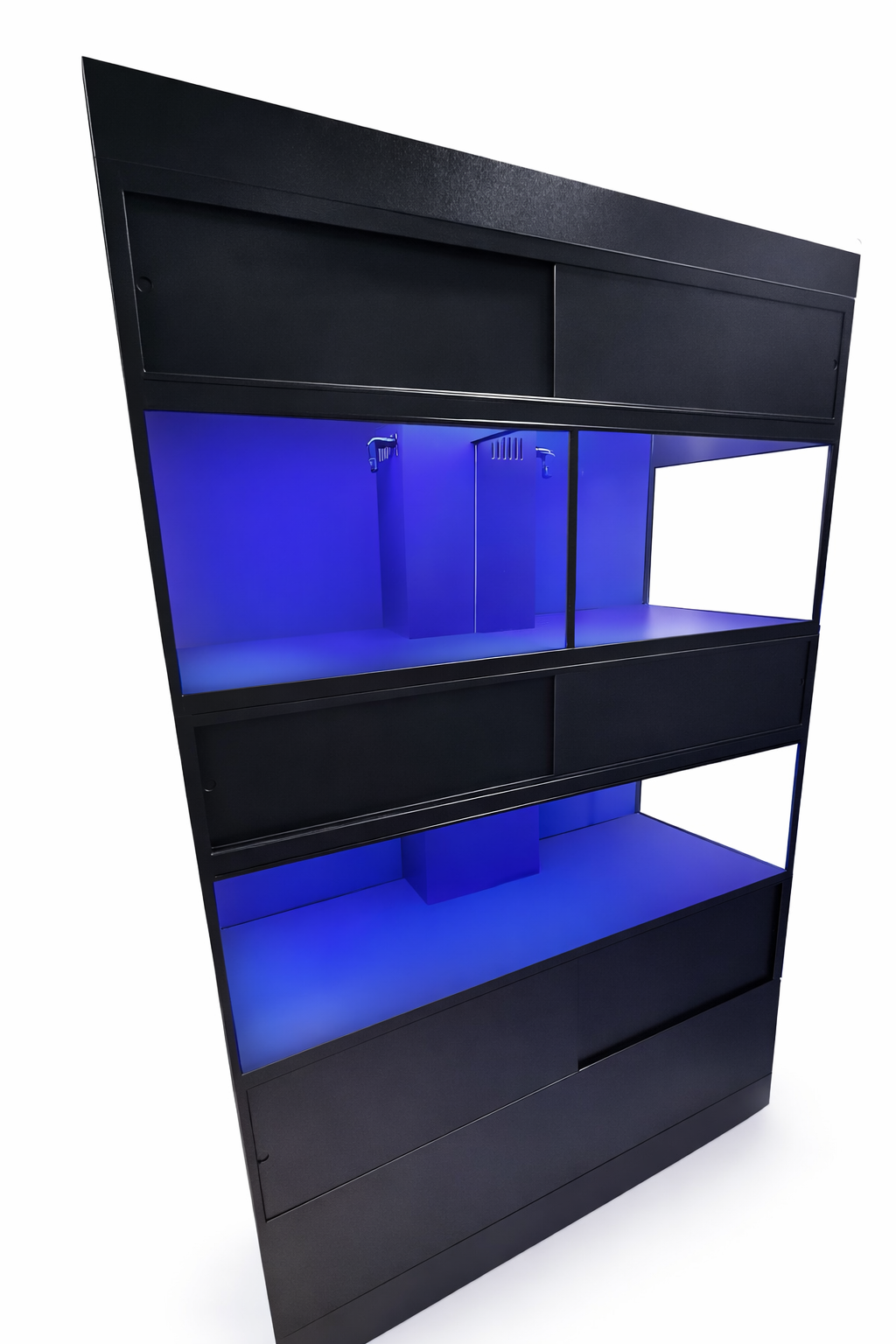

Key System Specifications

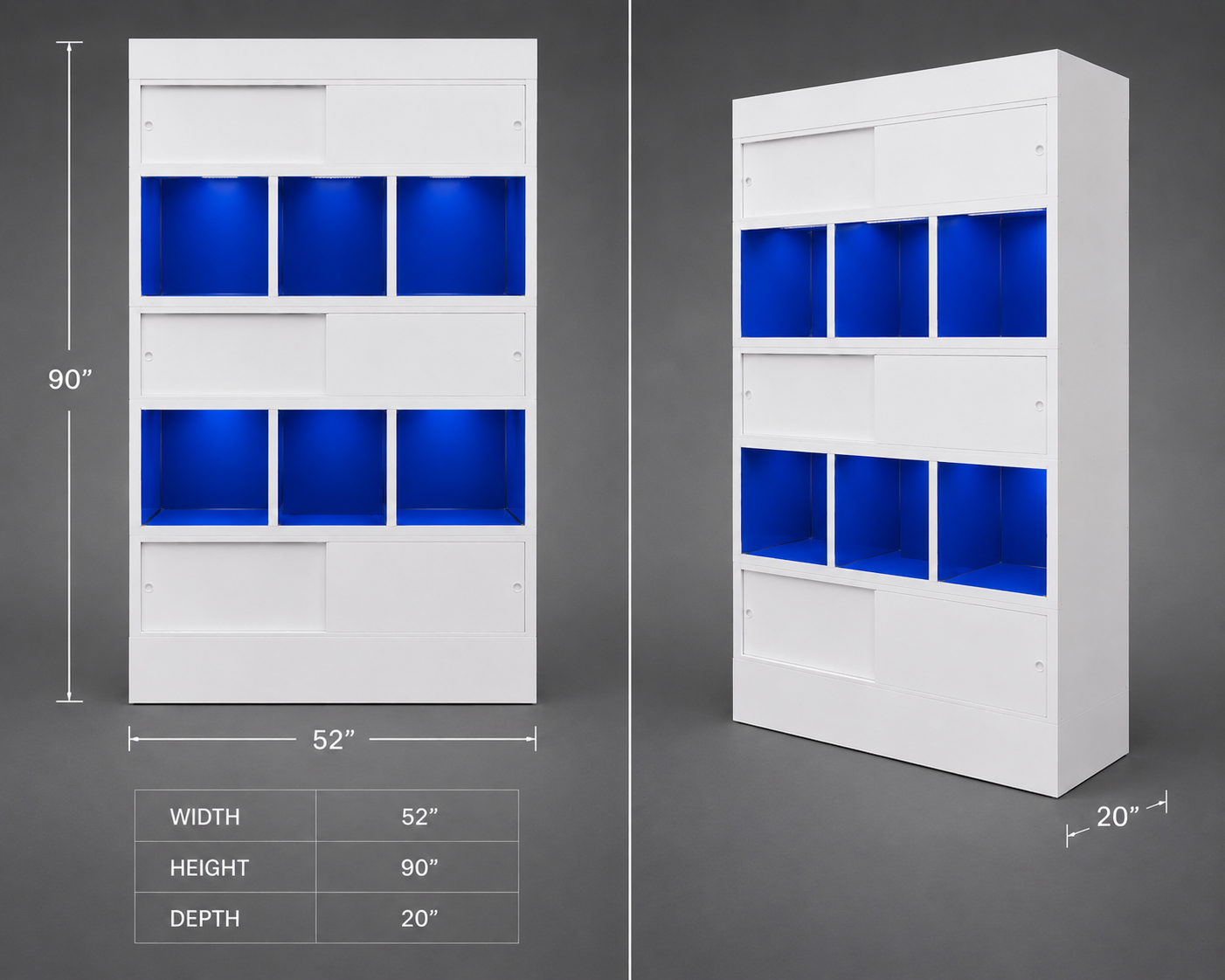

Overall Dimensions: 52″ L × 20″ W × 90″ H

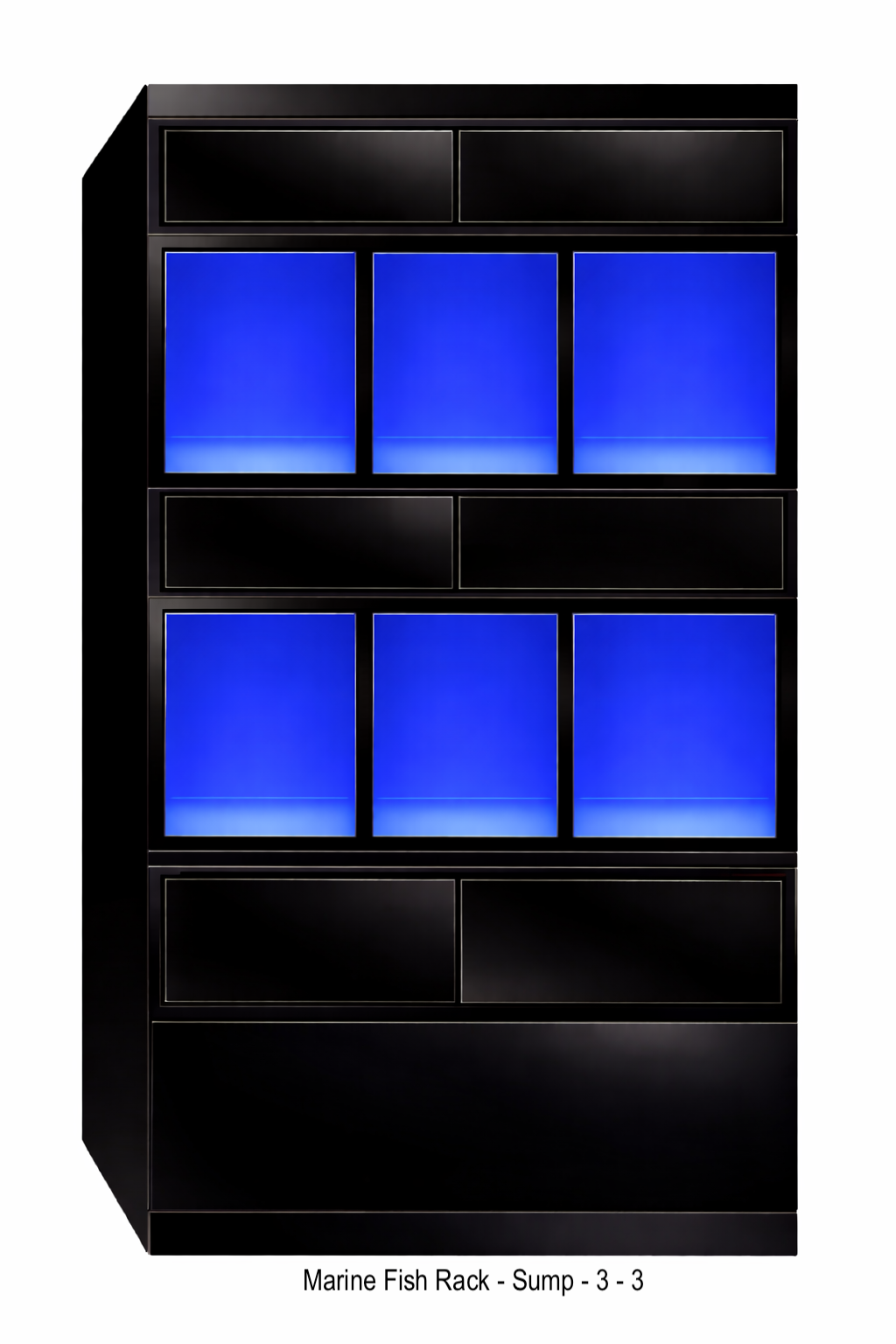

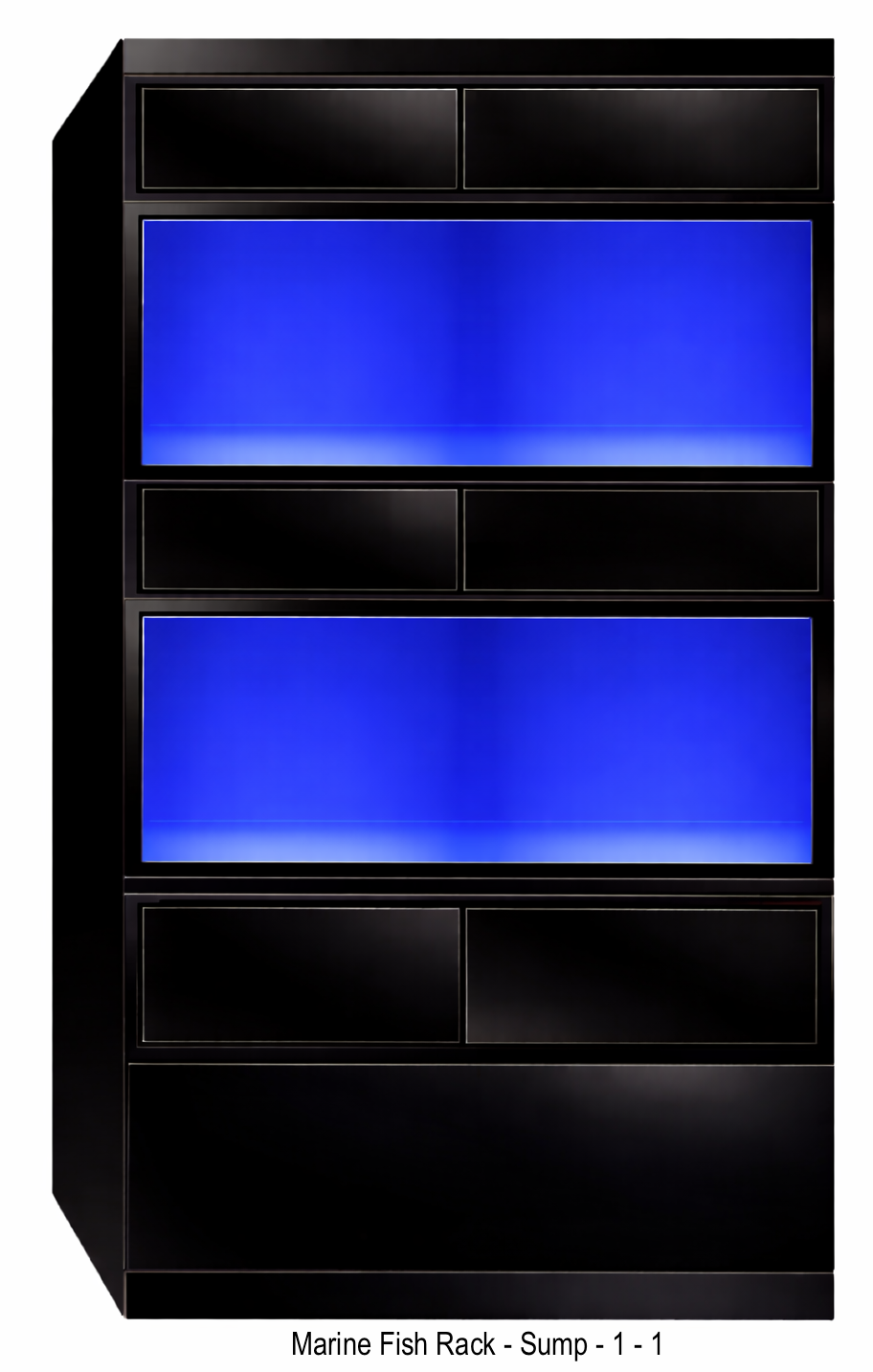

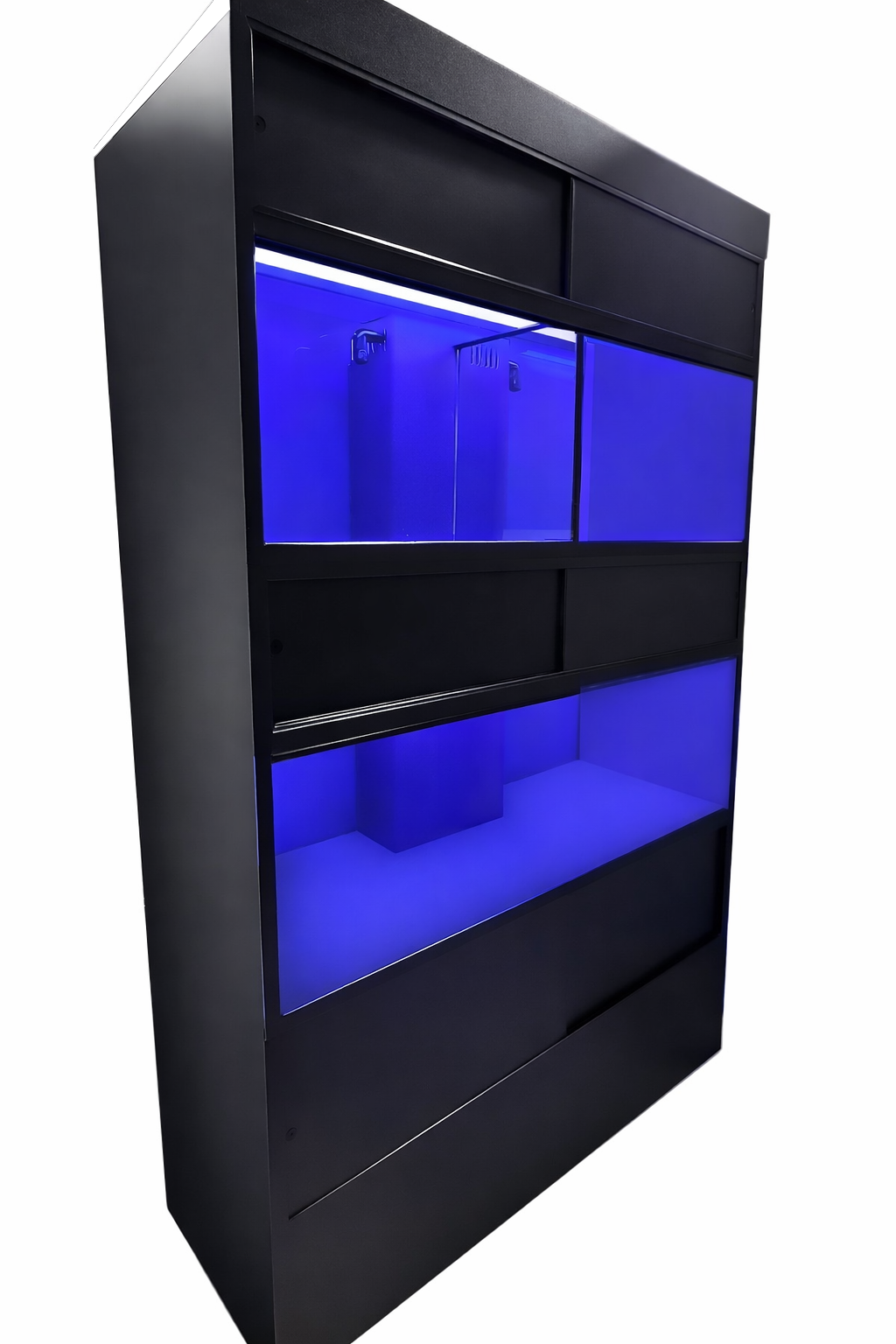

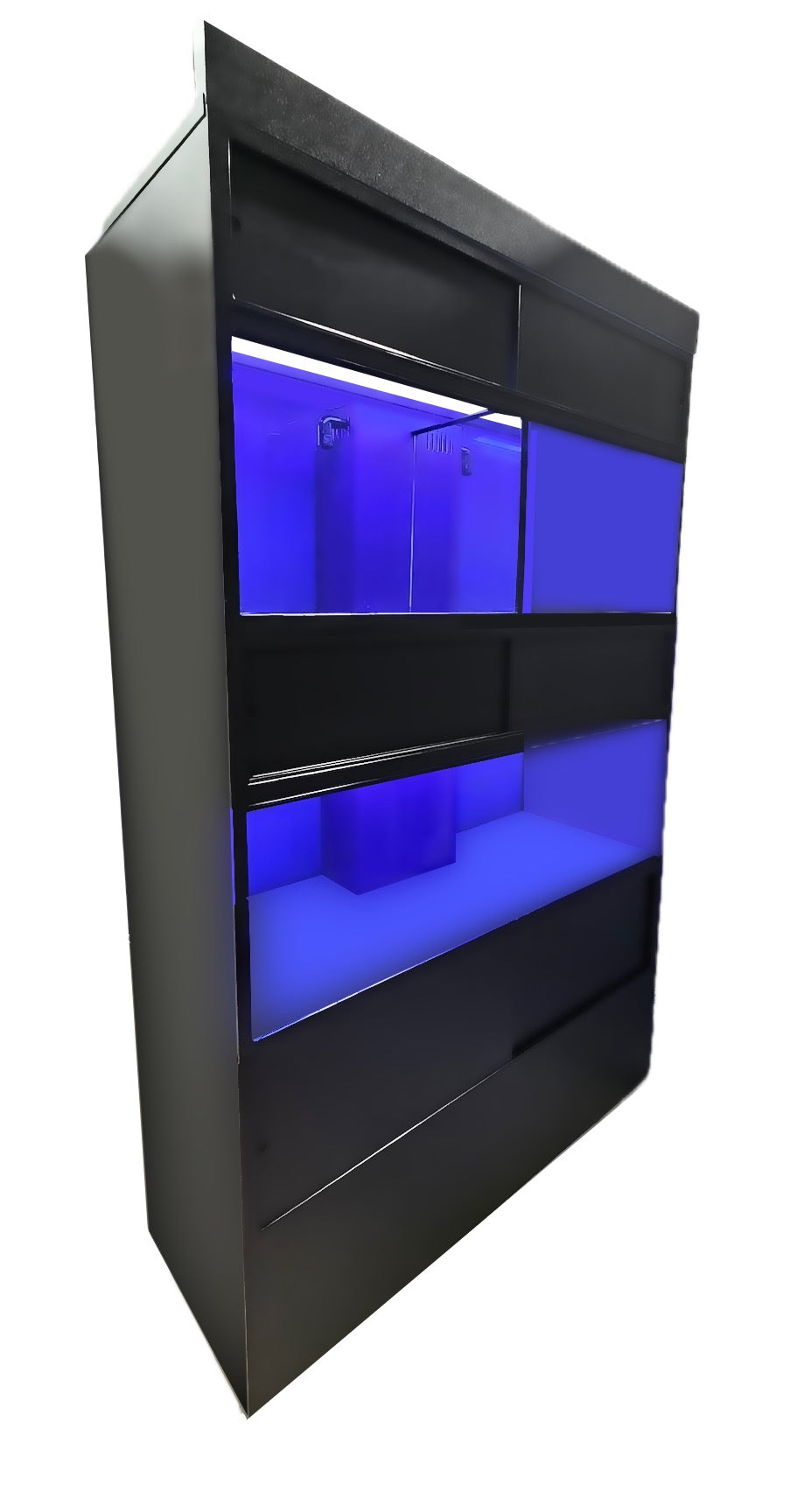

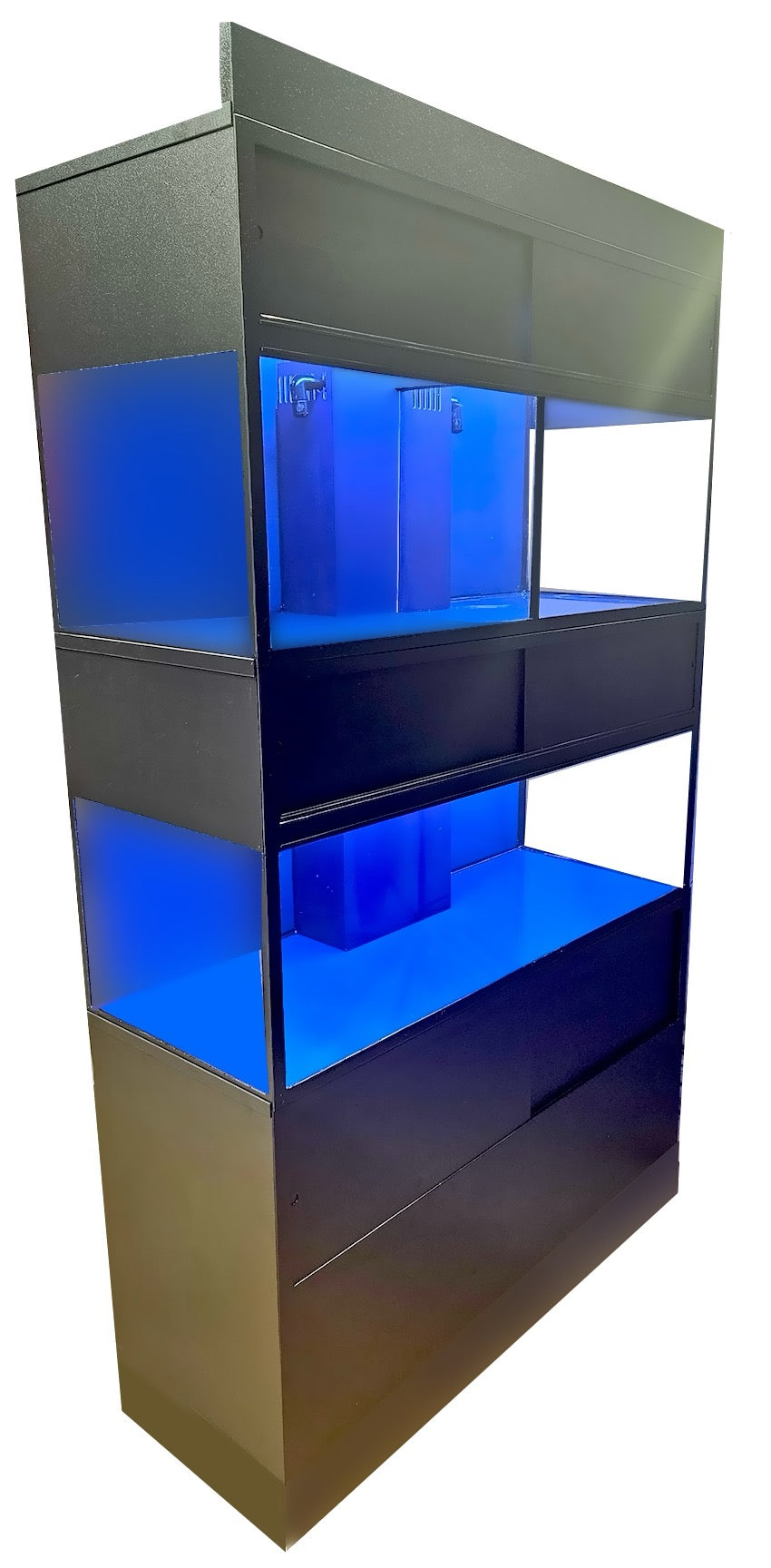

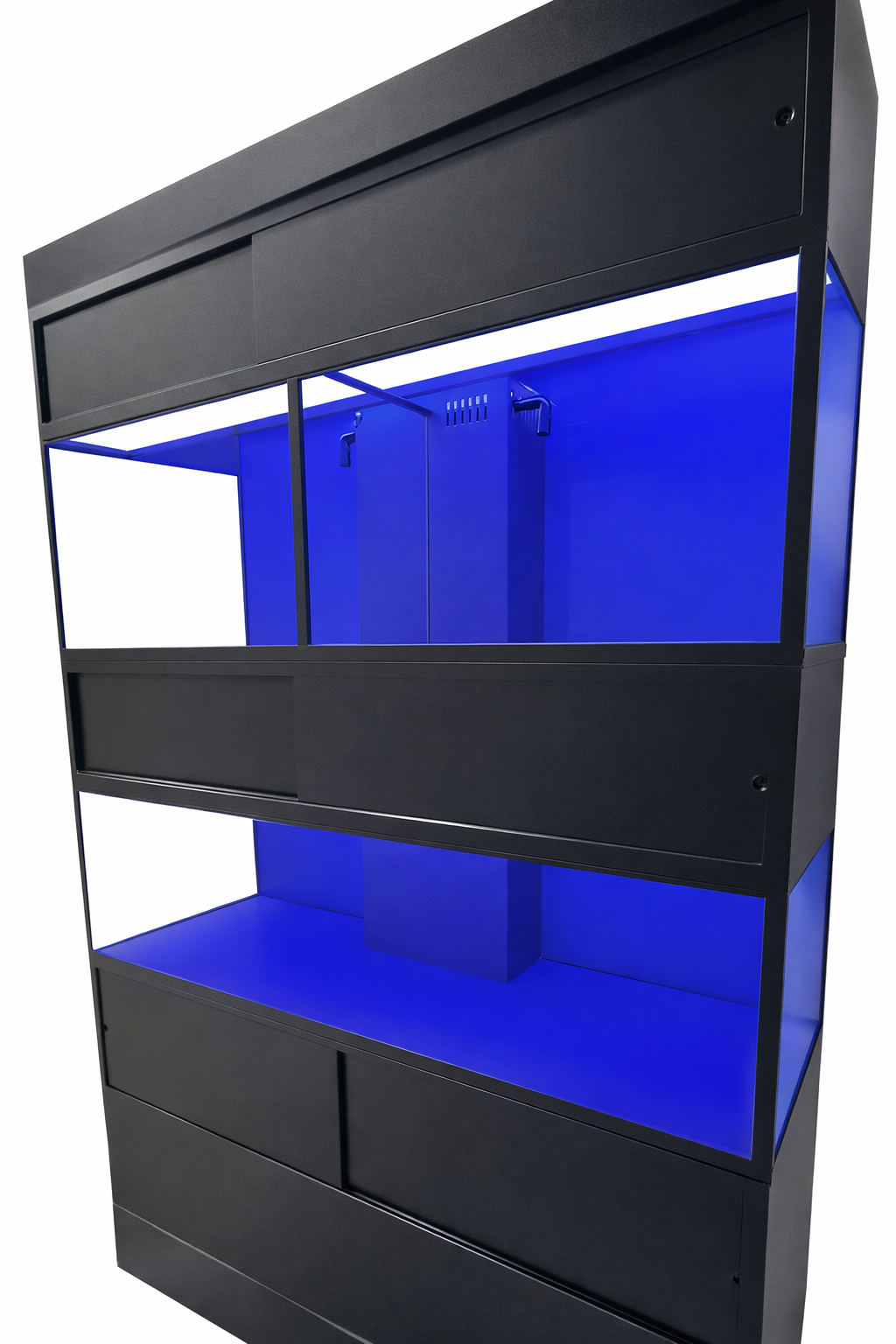

Configuration: Standard 3-tier rack system
System Capacity: 225 gallons total water volume
Sump Design: Bottom tier functions as a full-size system sump
Serviced Tiers: Top 2 or 3 tiers supplied by centralized sump
Access: Removable sliding front doors and removable bottom skirt
Efficiency: Minimal plumbing and electrical requirements for reduced energy consumption

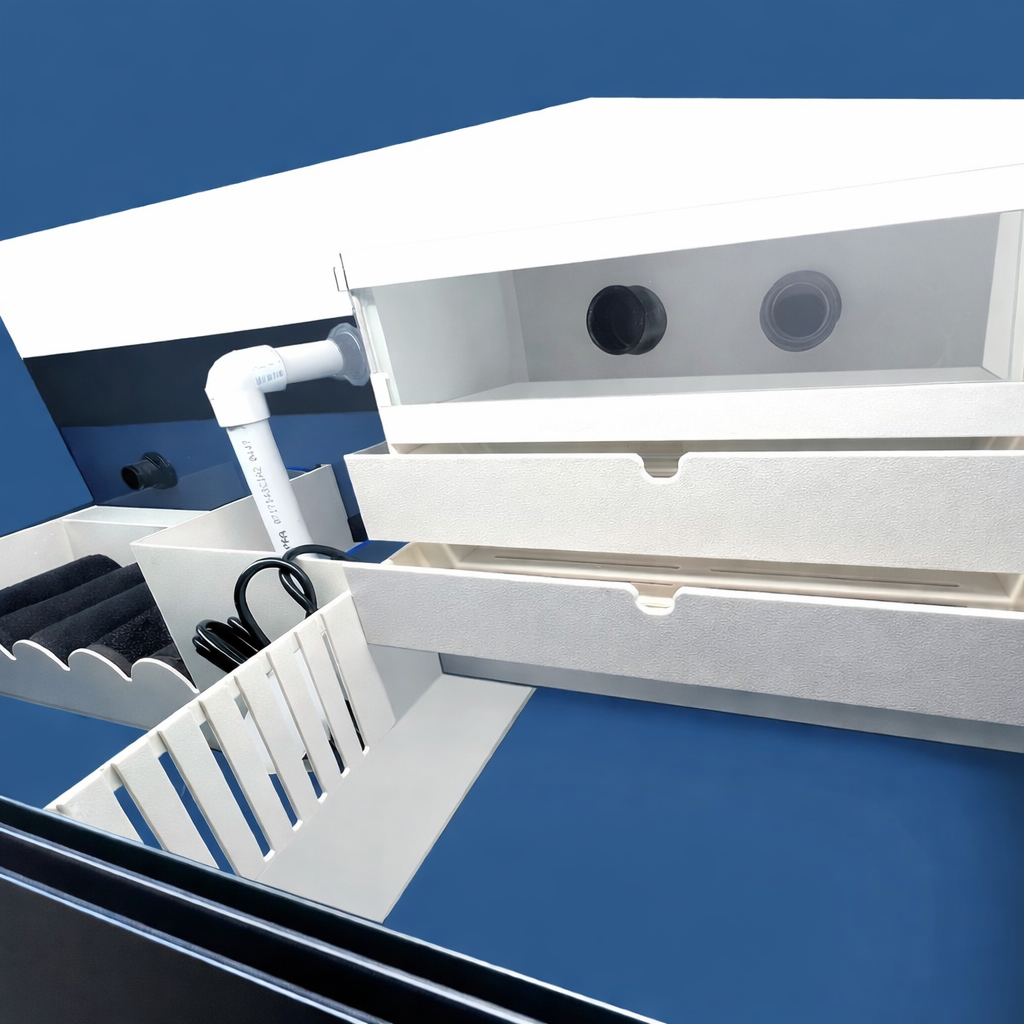

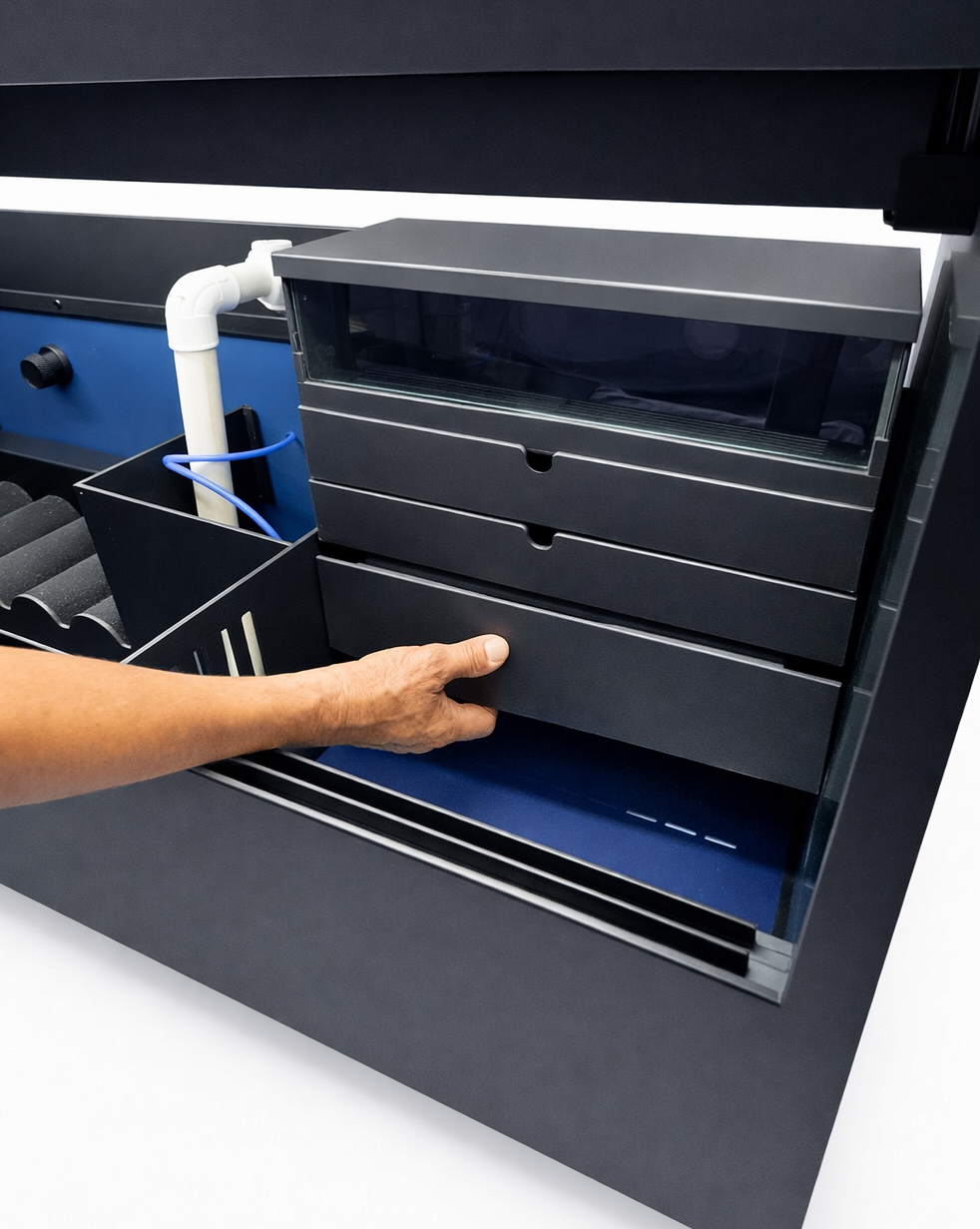

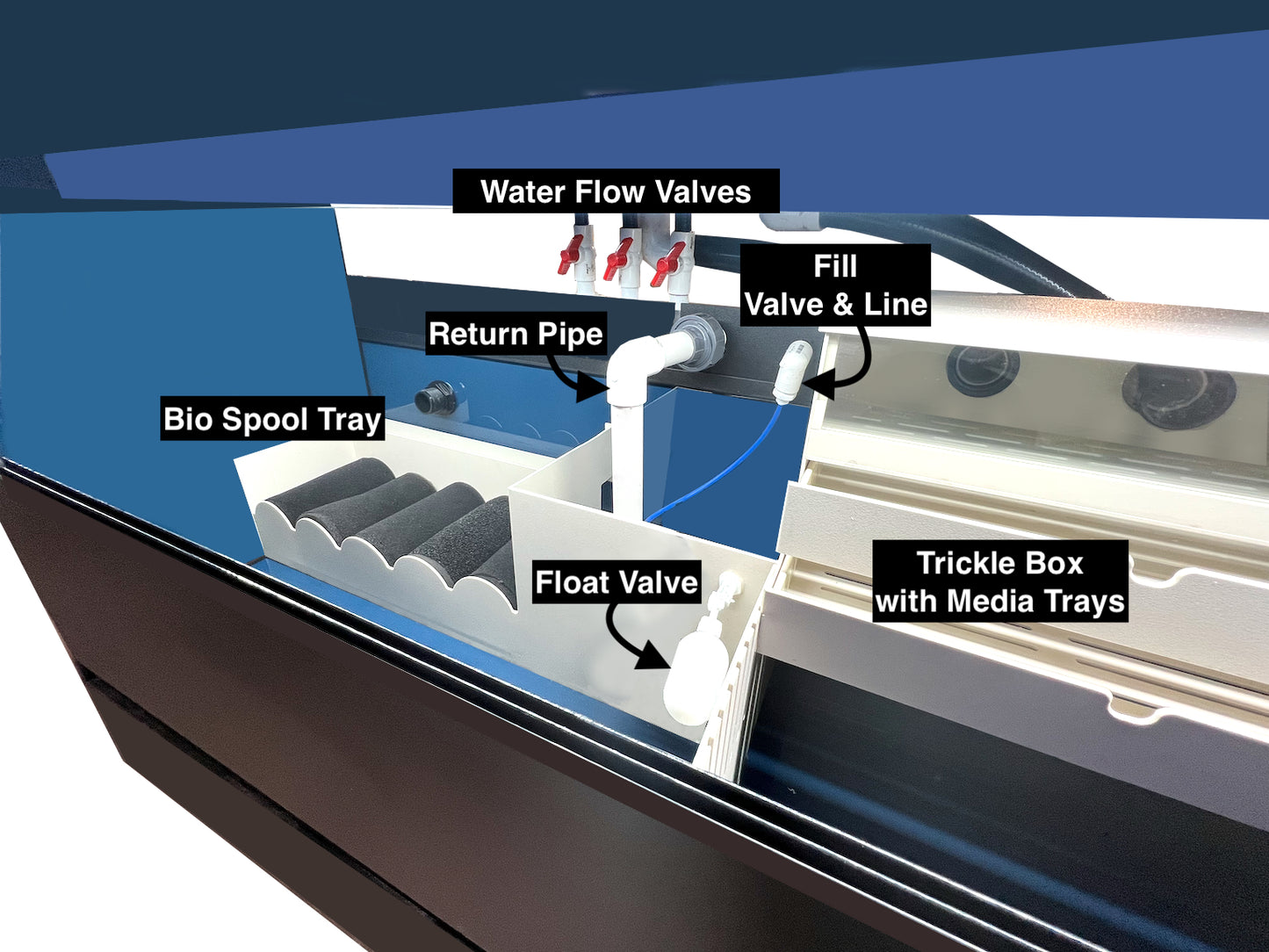

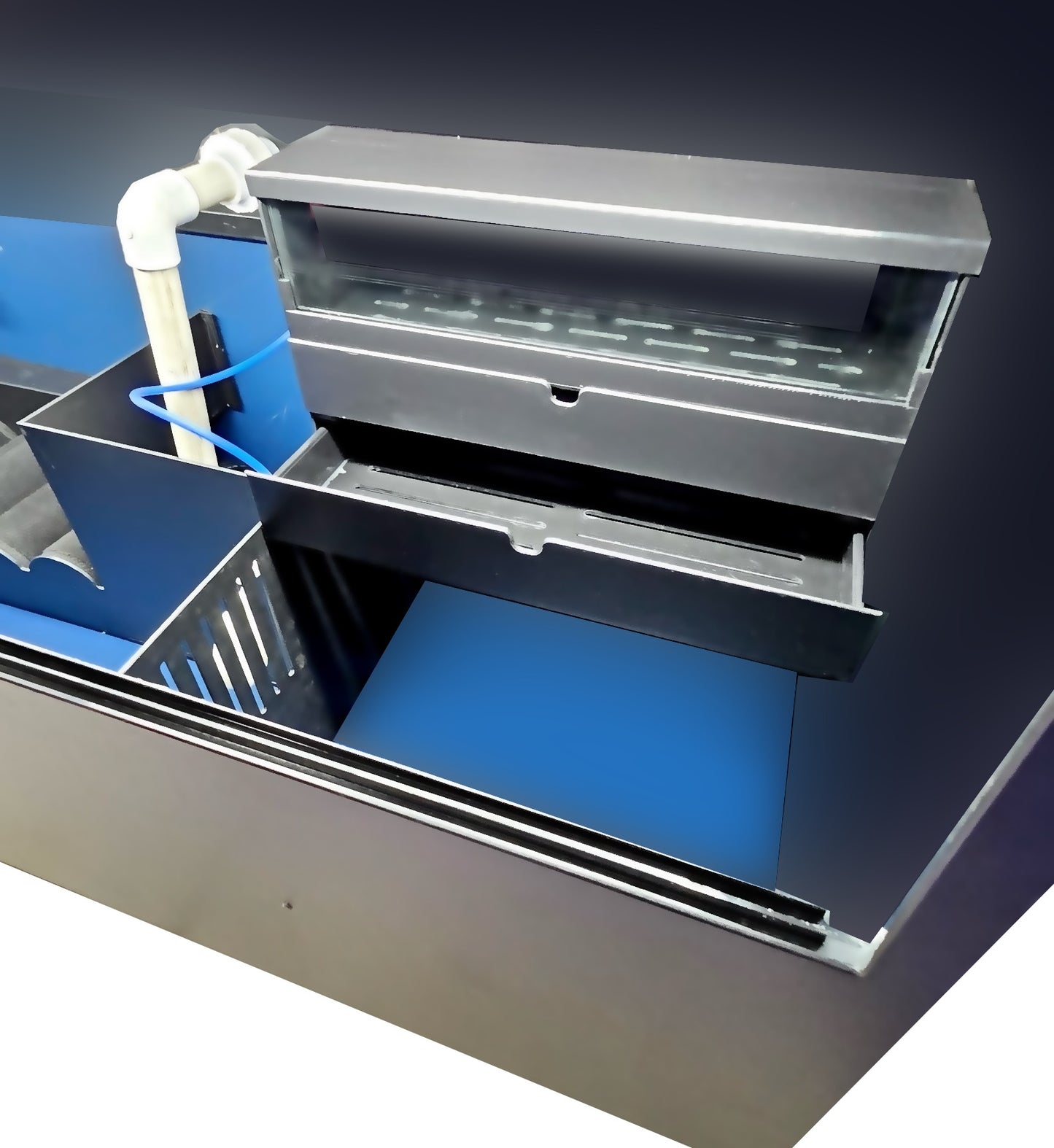

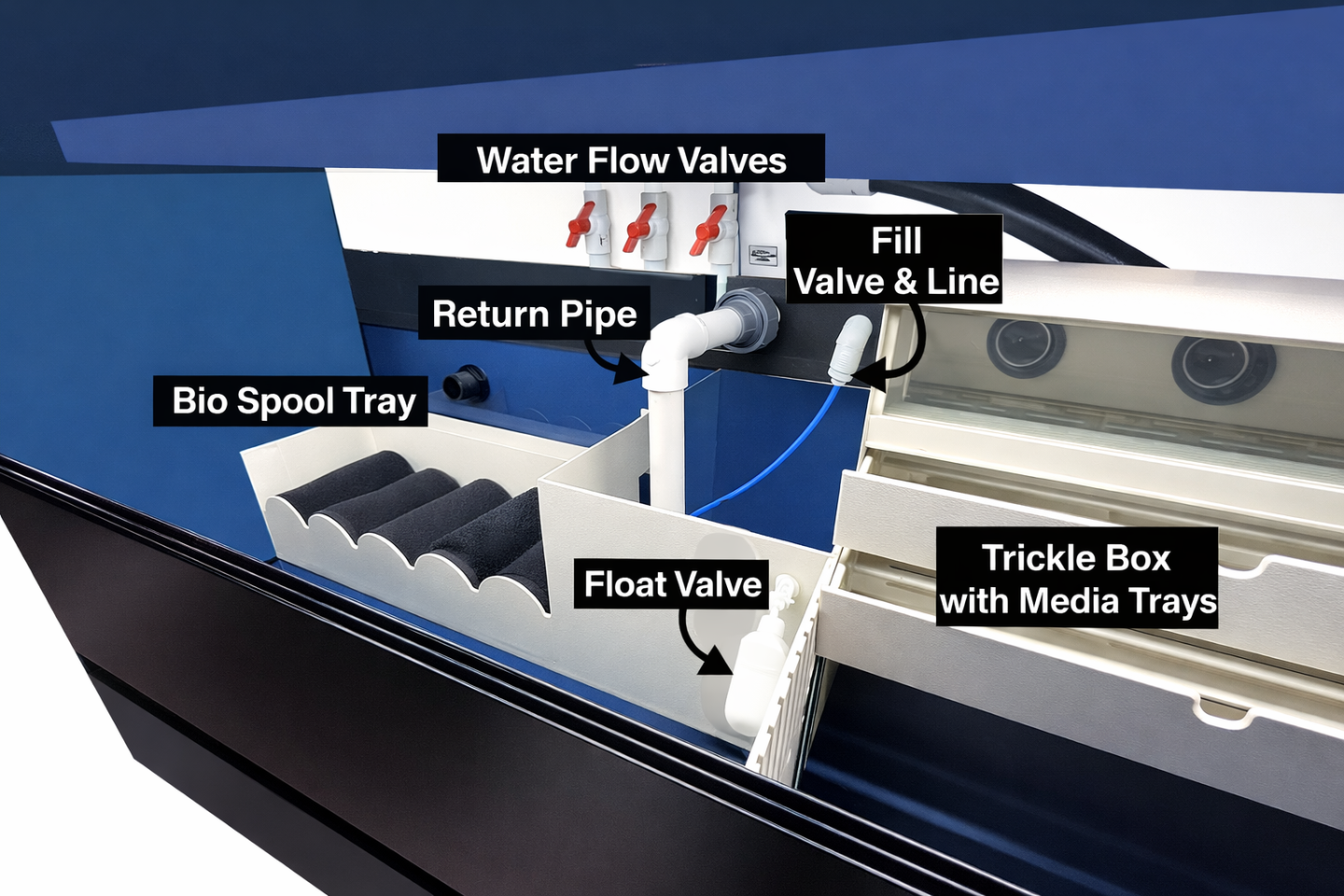

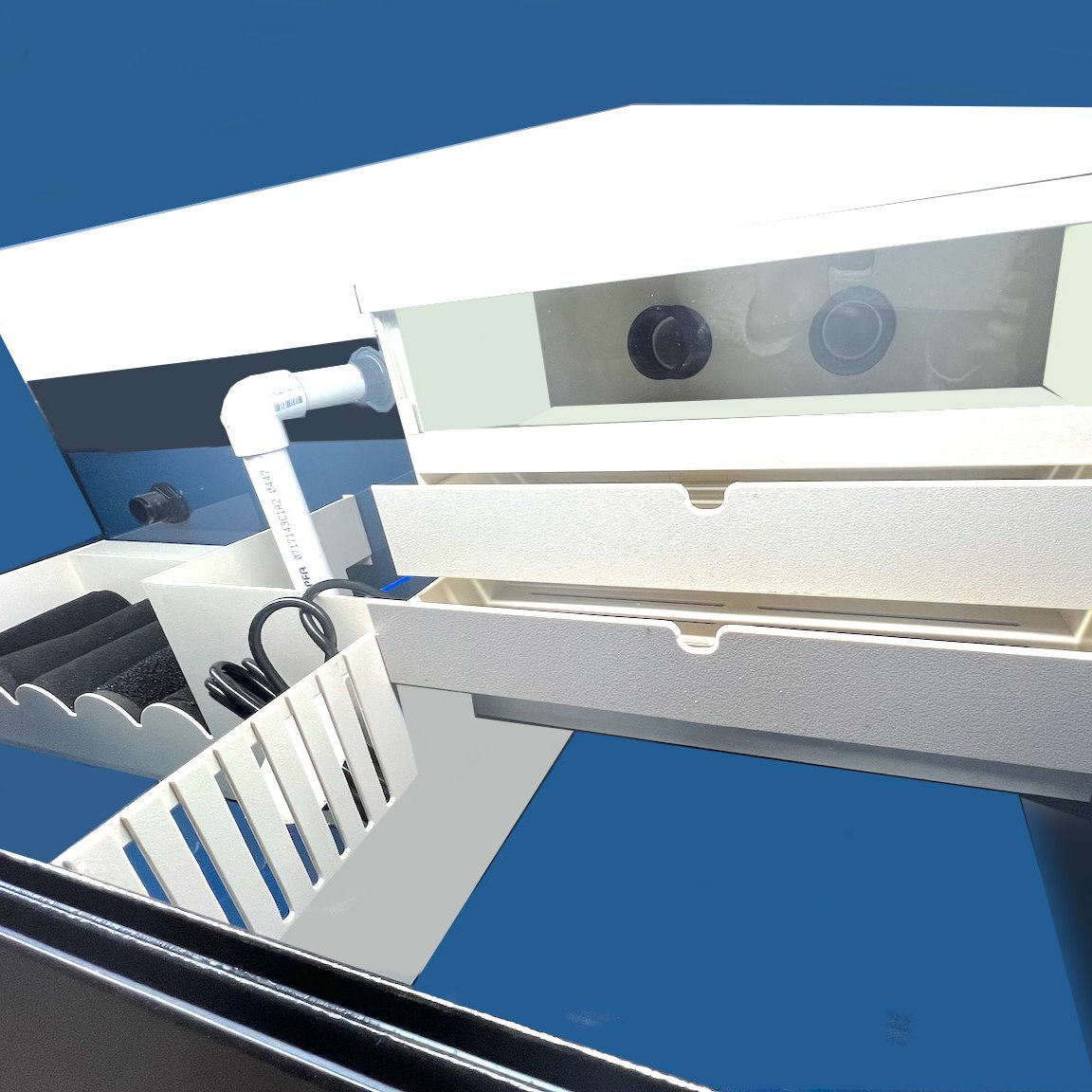

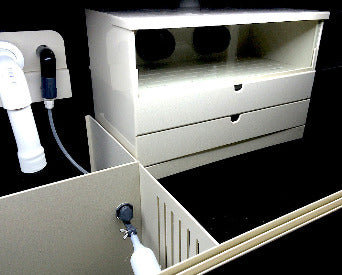

Integrated Sump & Filtration System

The bottom sump is fully equipped for high biological load capacity and long-term retail operation:

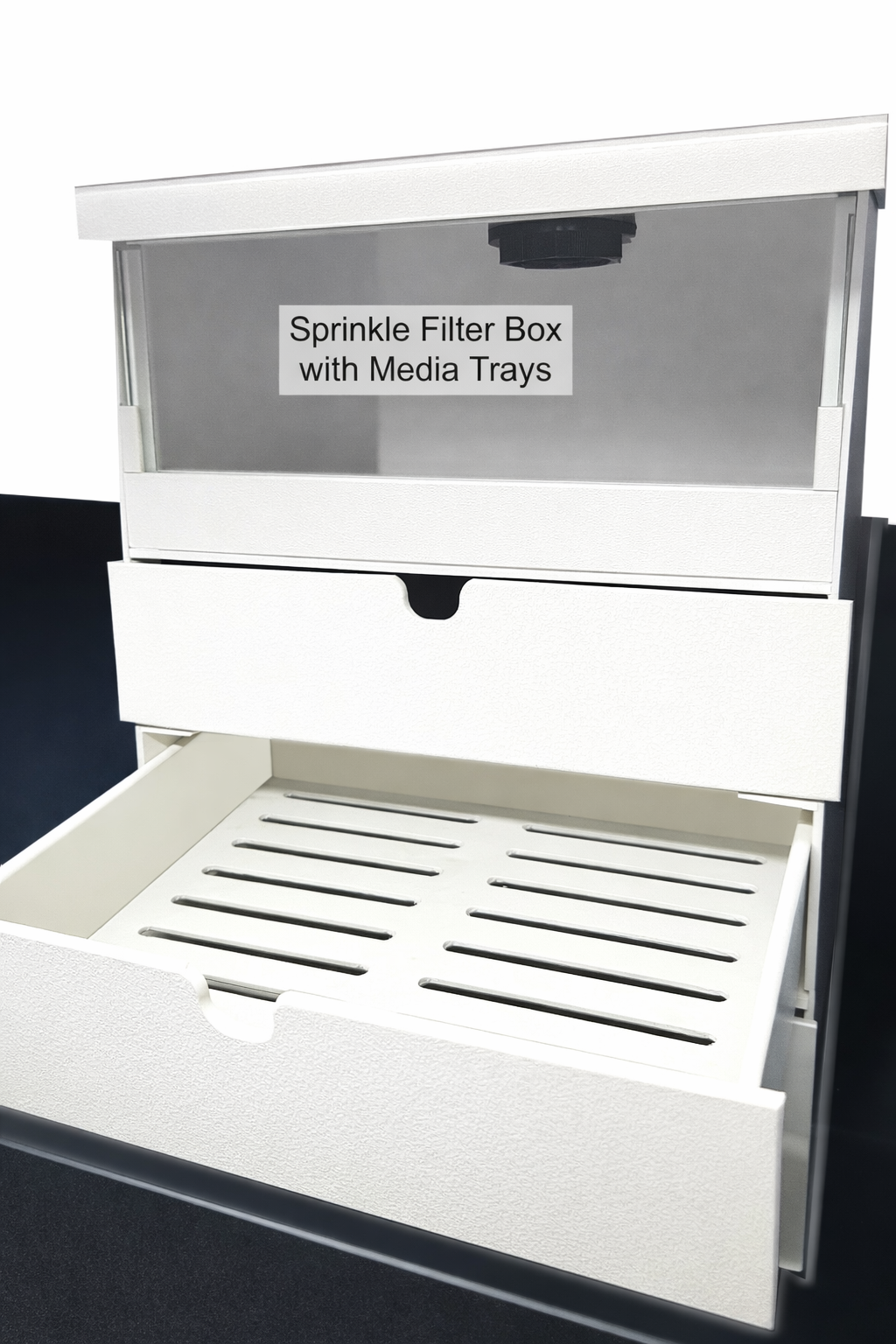

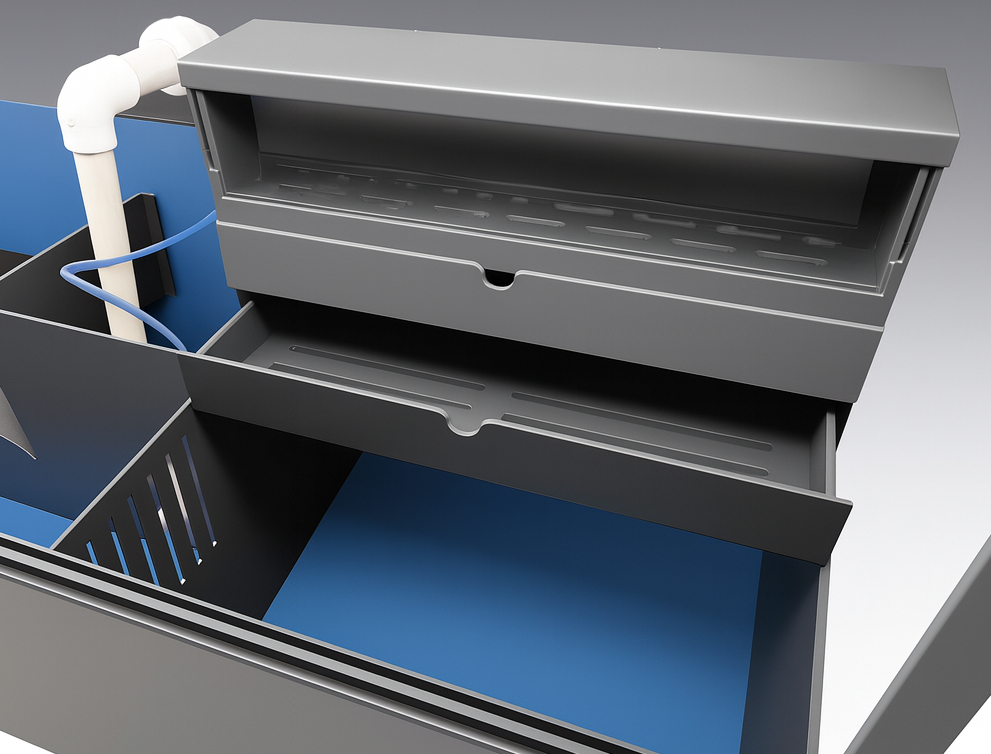

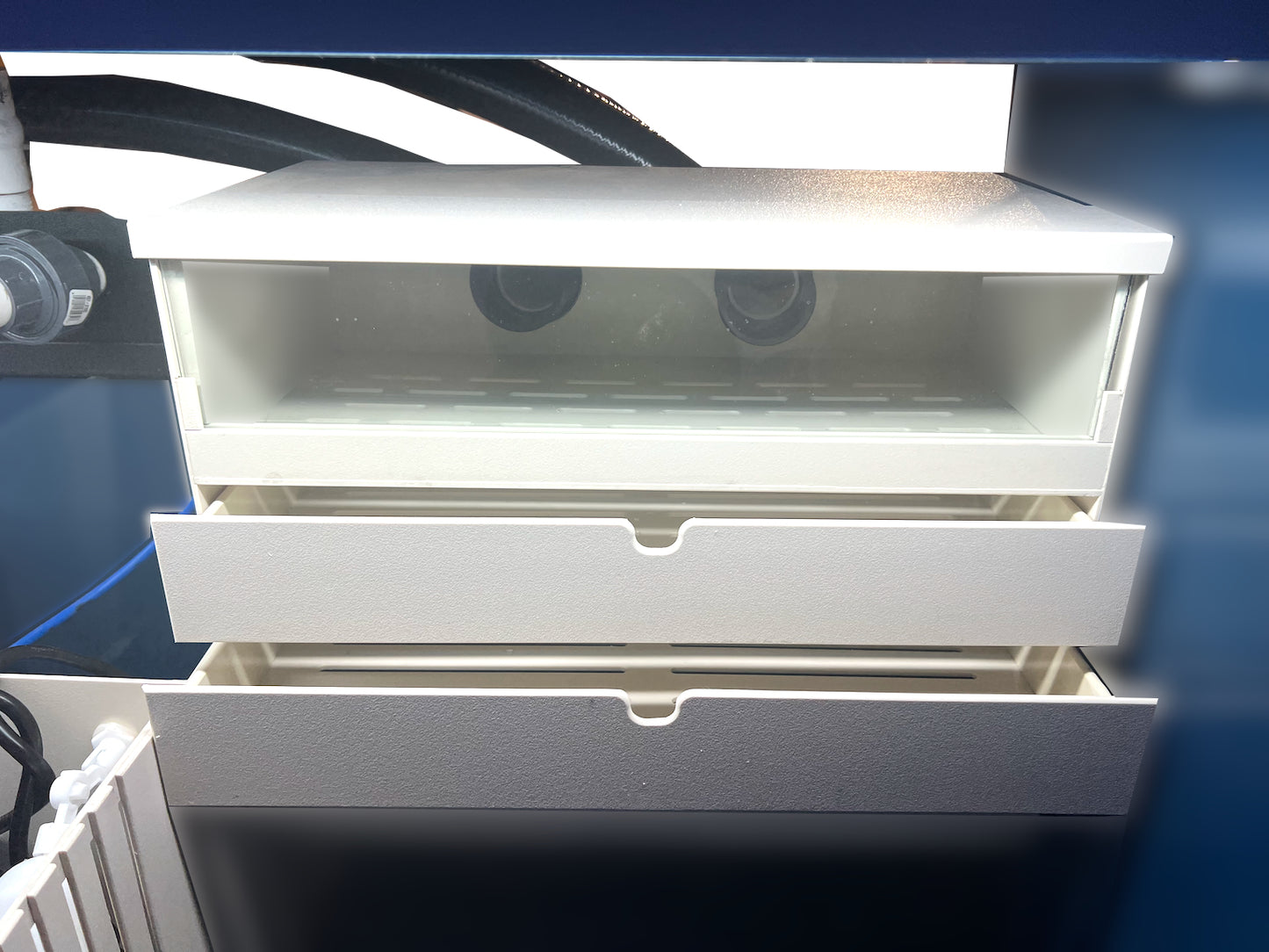

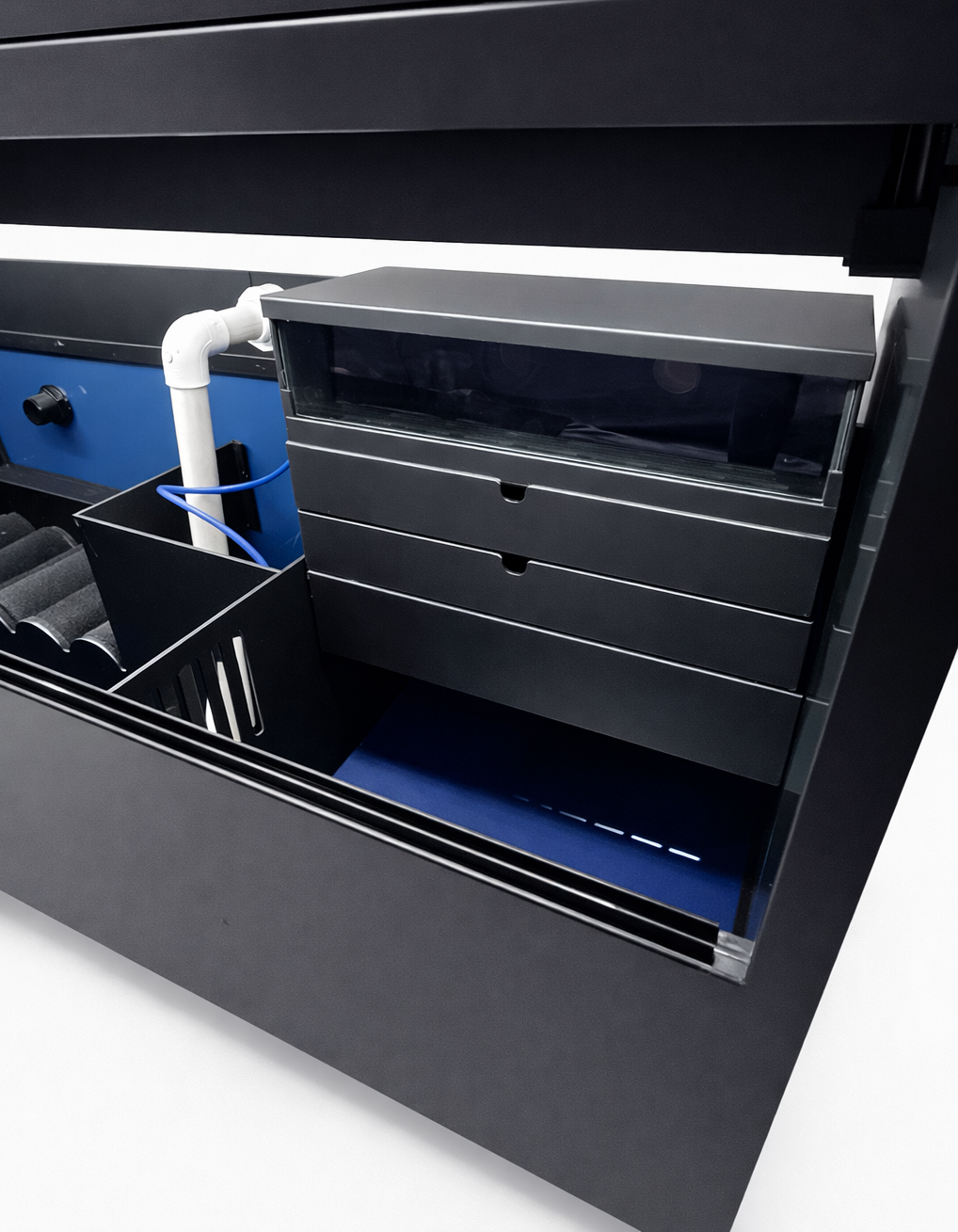

Trickle Box Filtration

Removable media trays accommodate chemical, or biological media of your choice.

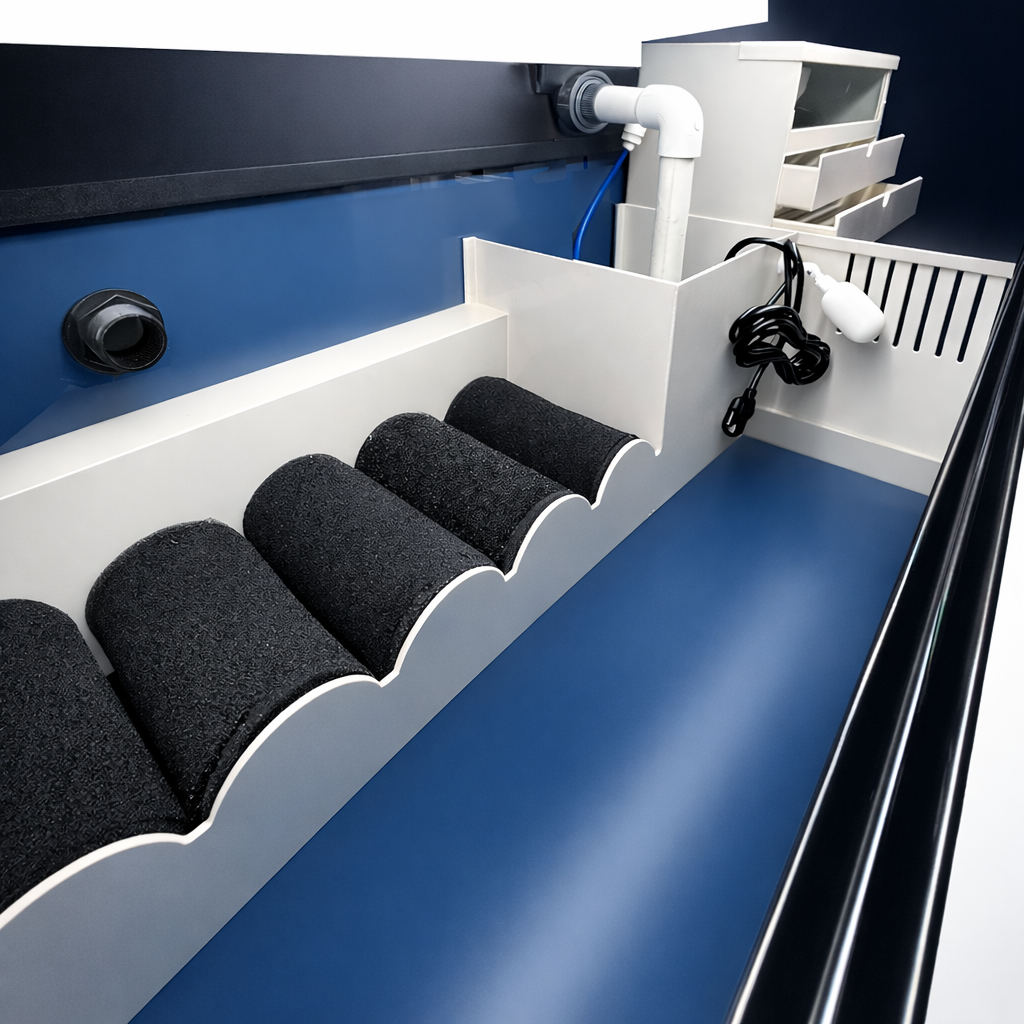

Biological Filtration

Bio spool tray with 8″ double-layer foam spools for high surface-area biological filtration.

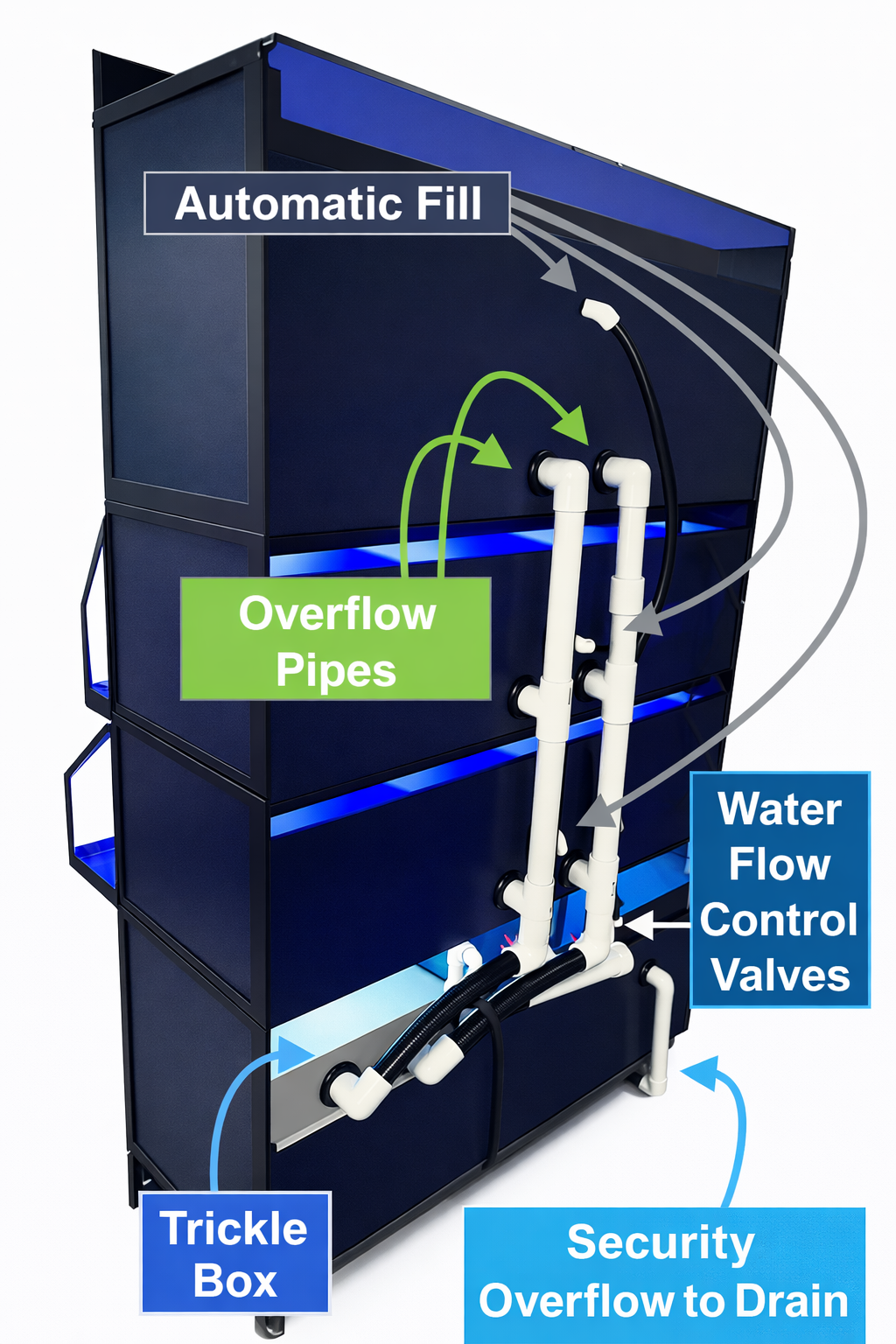

Automatic Water Management

Float valve for automatic fill from water source
Fill valve and water line included
Automatic fill and overflow pipe sets included

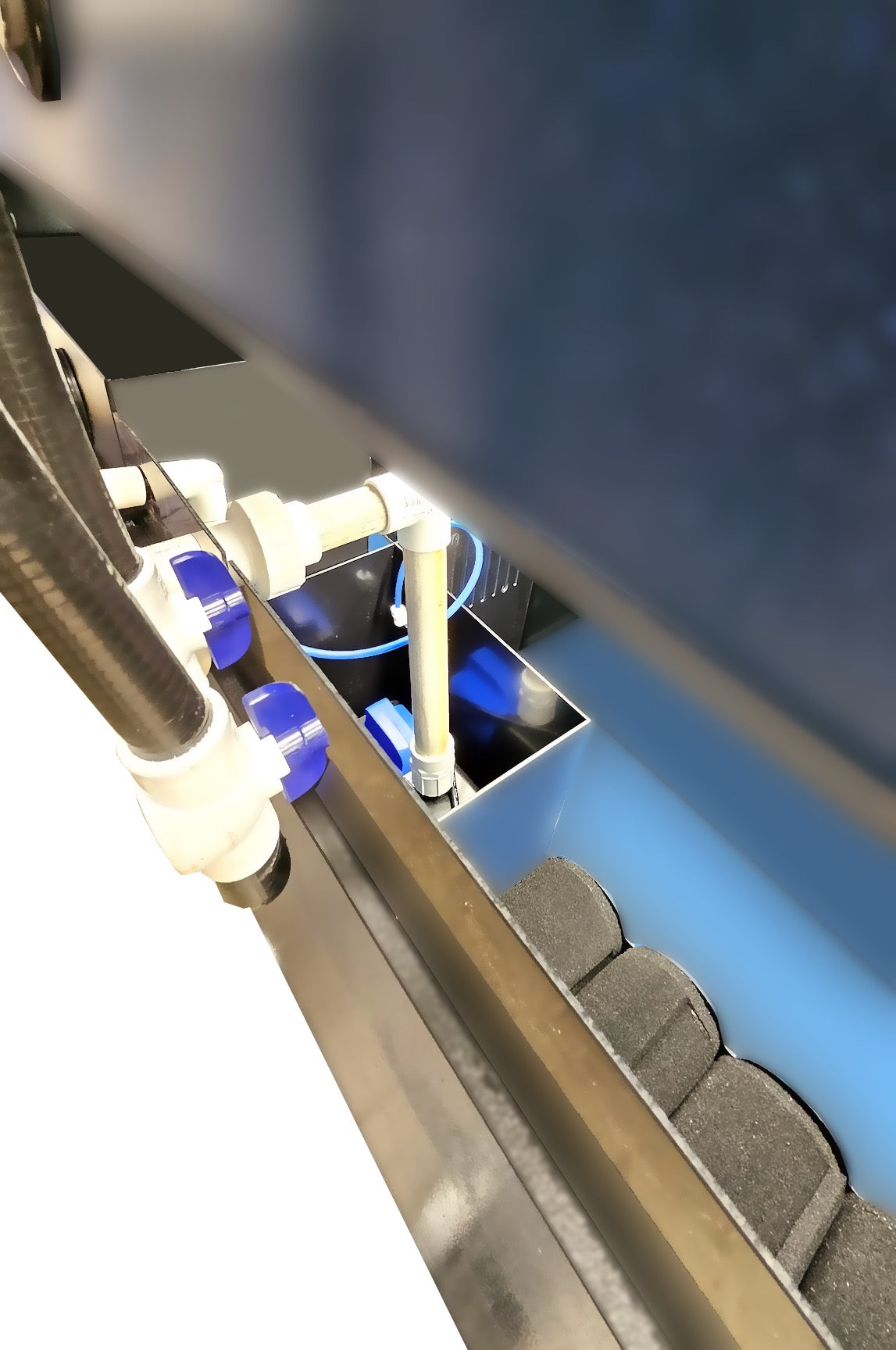

Flow Control & Safety

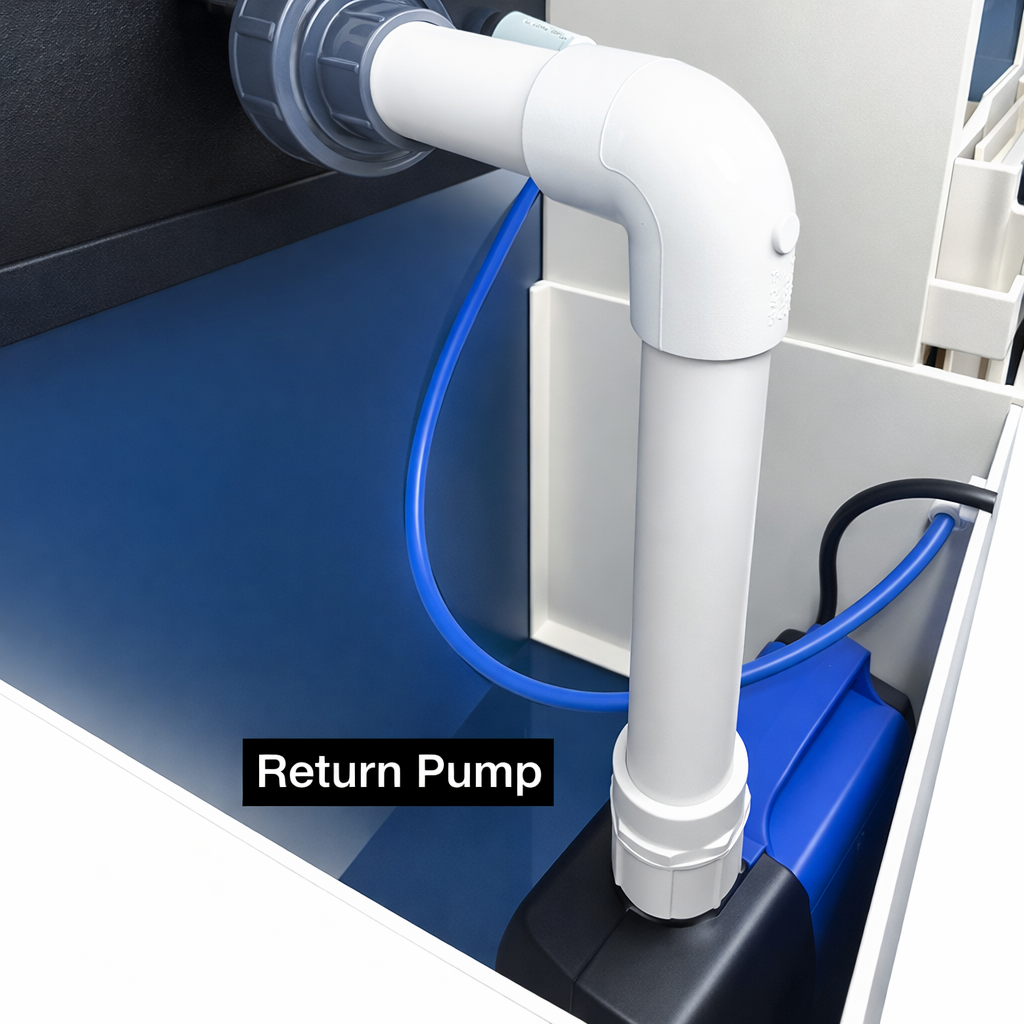

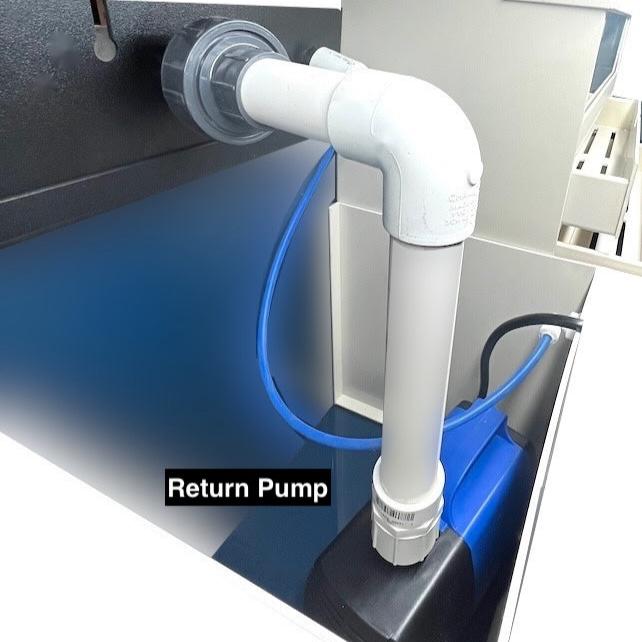

Powerful return pump

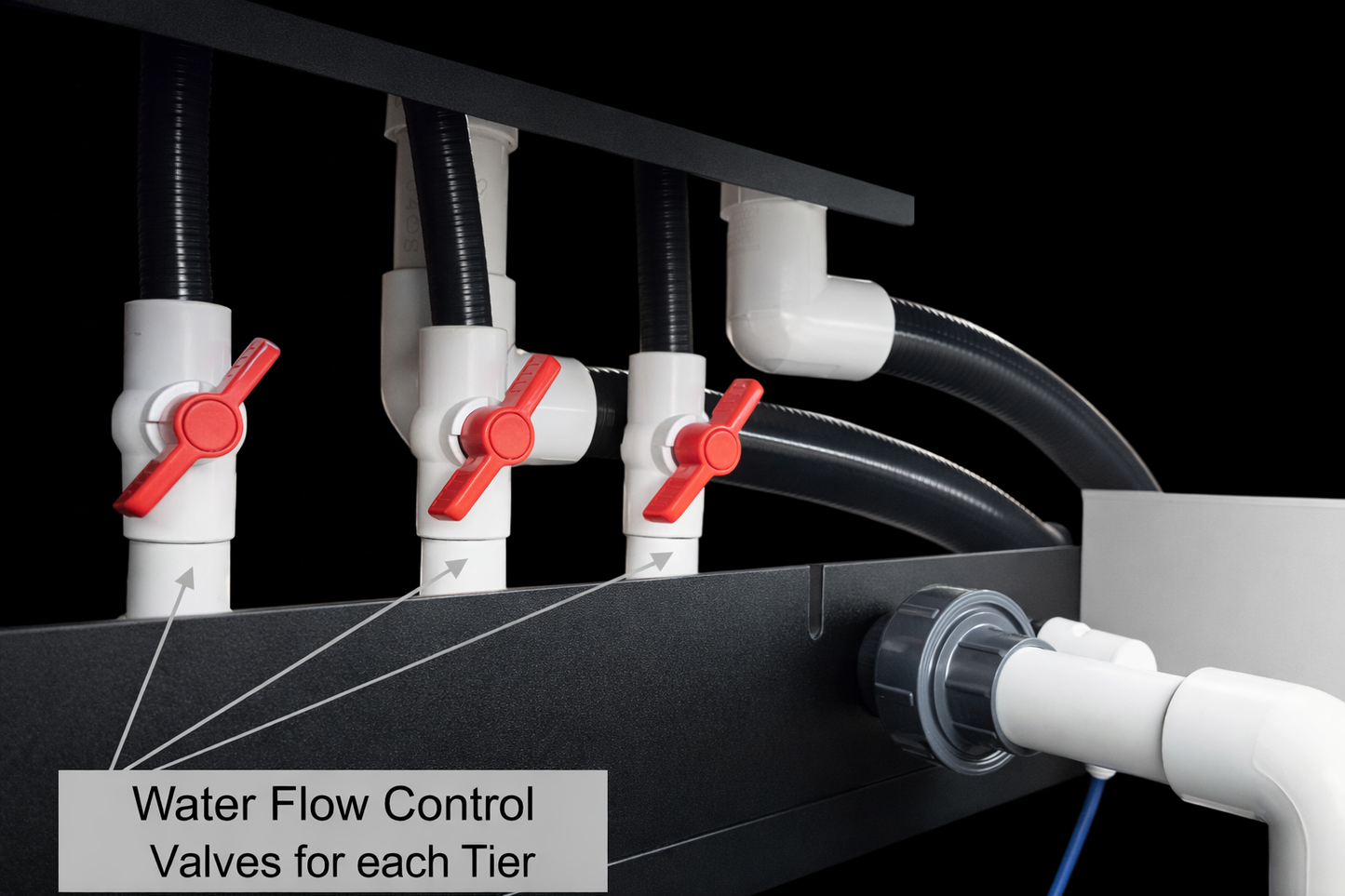

Individual water flow valves at each level
Dedicated security overflow to drain in the event of power failure

Custom Filtration Available

Optimized Overflow Design

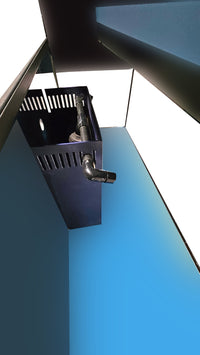

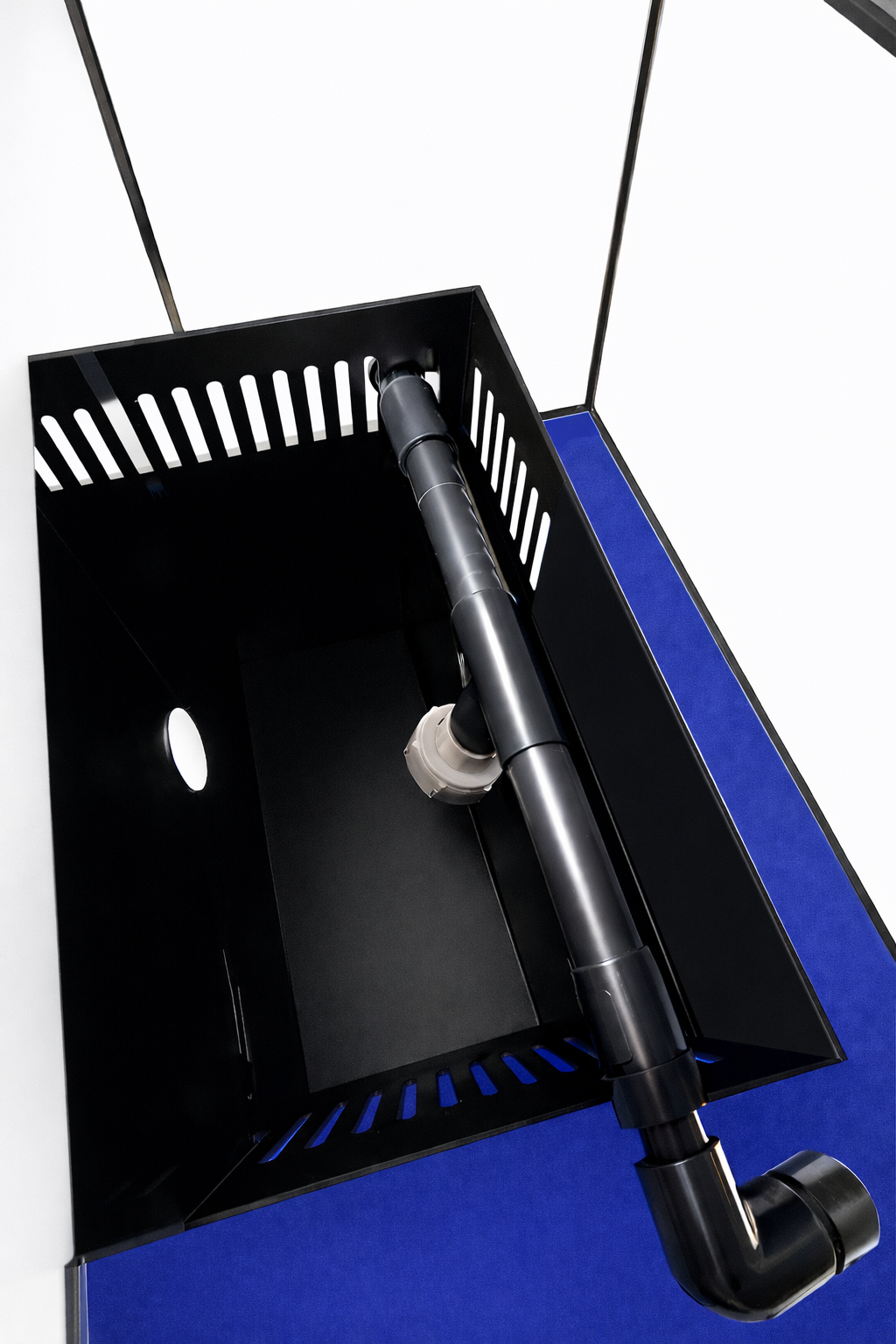

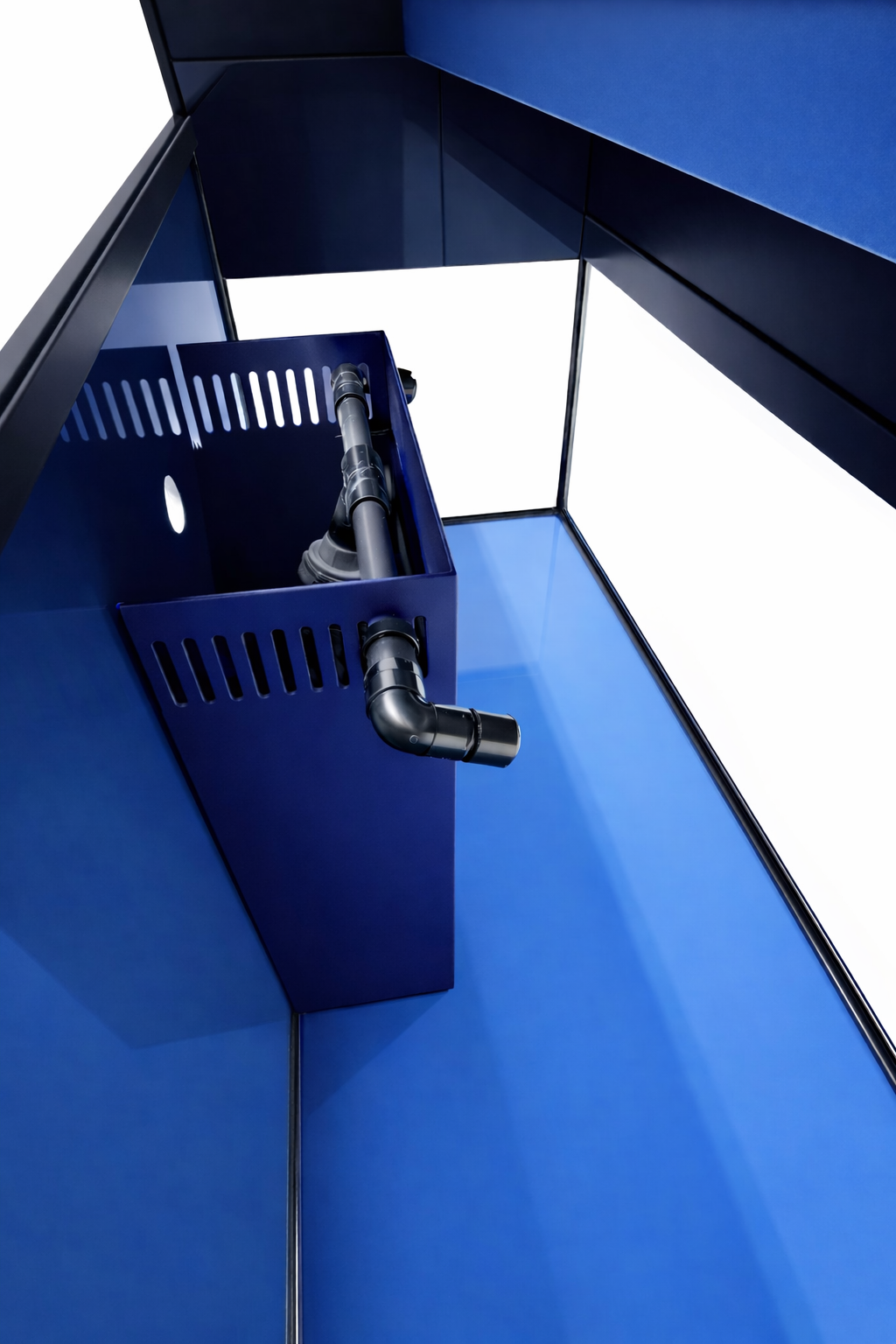

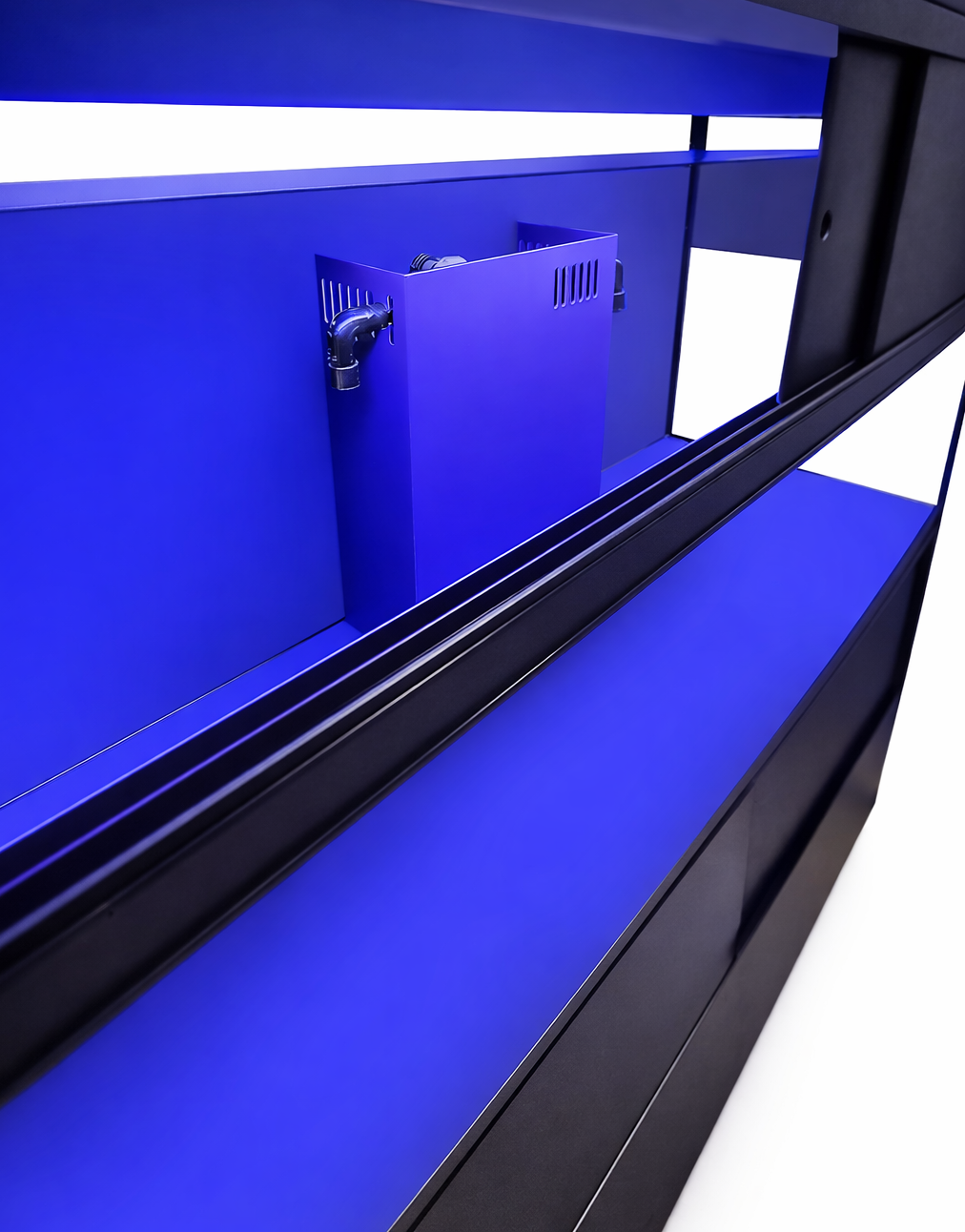

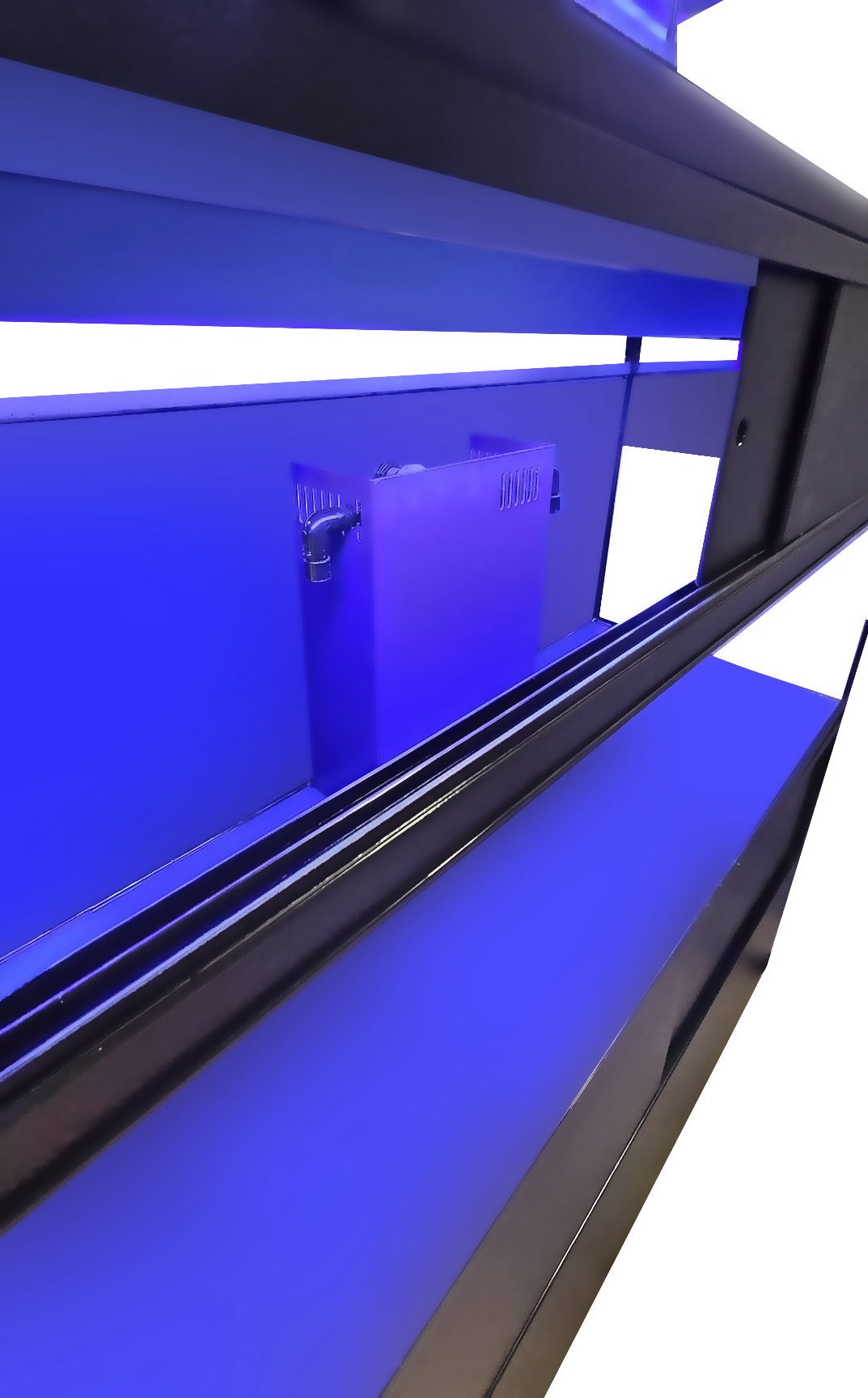

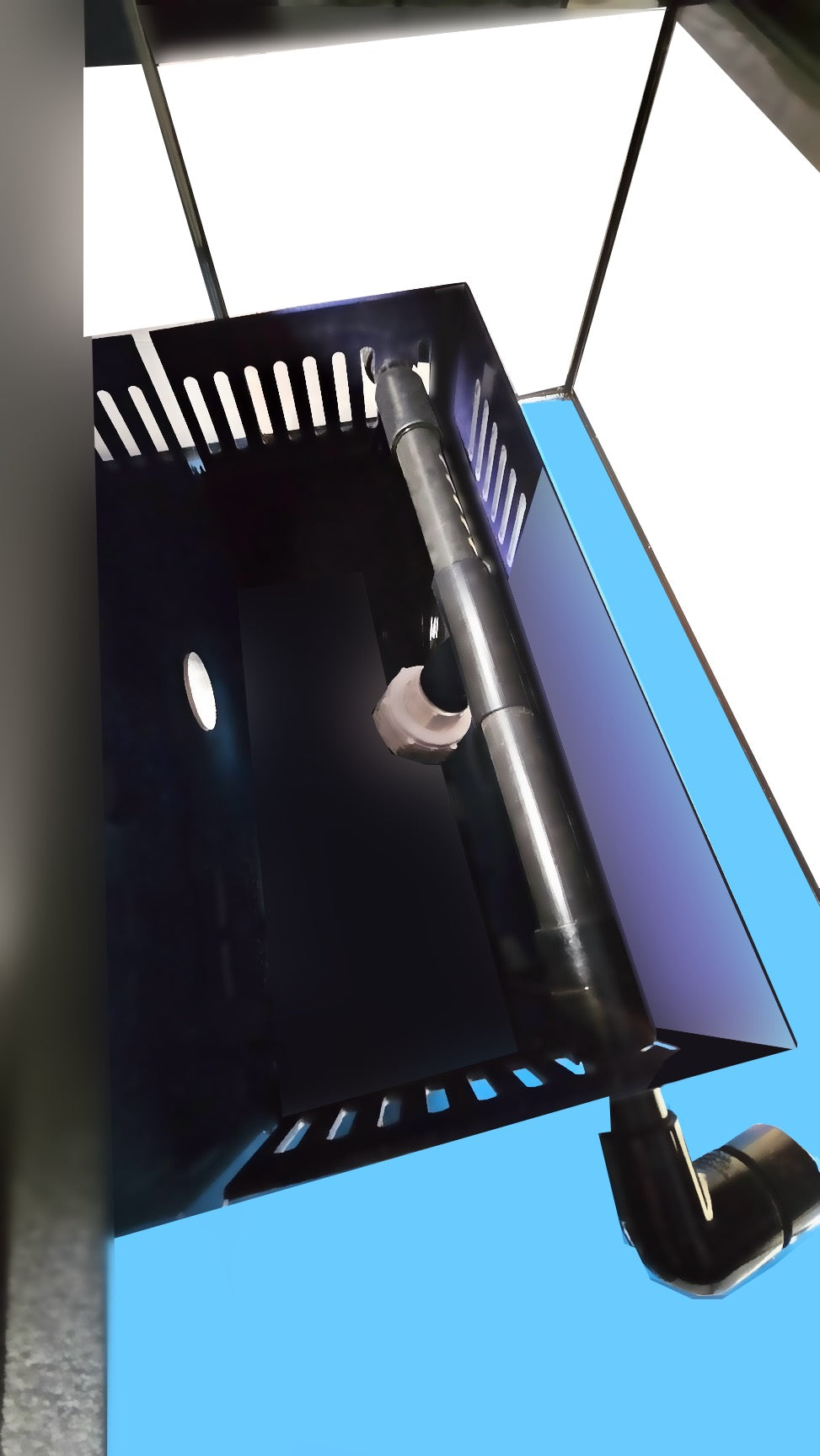

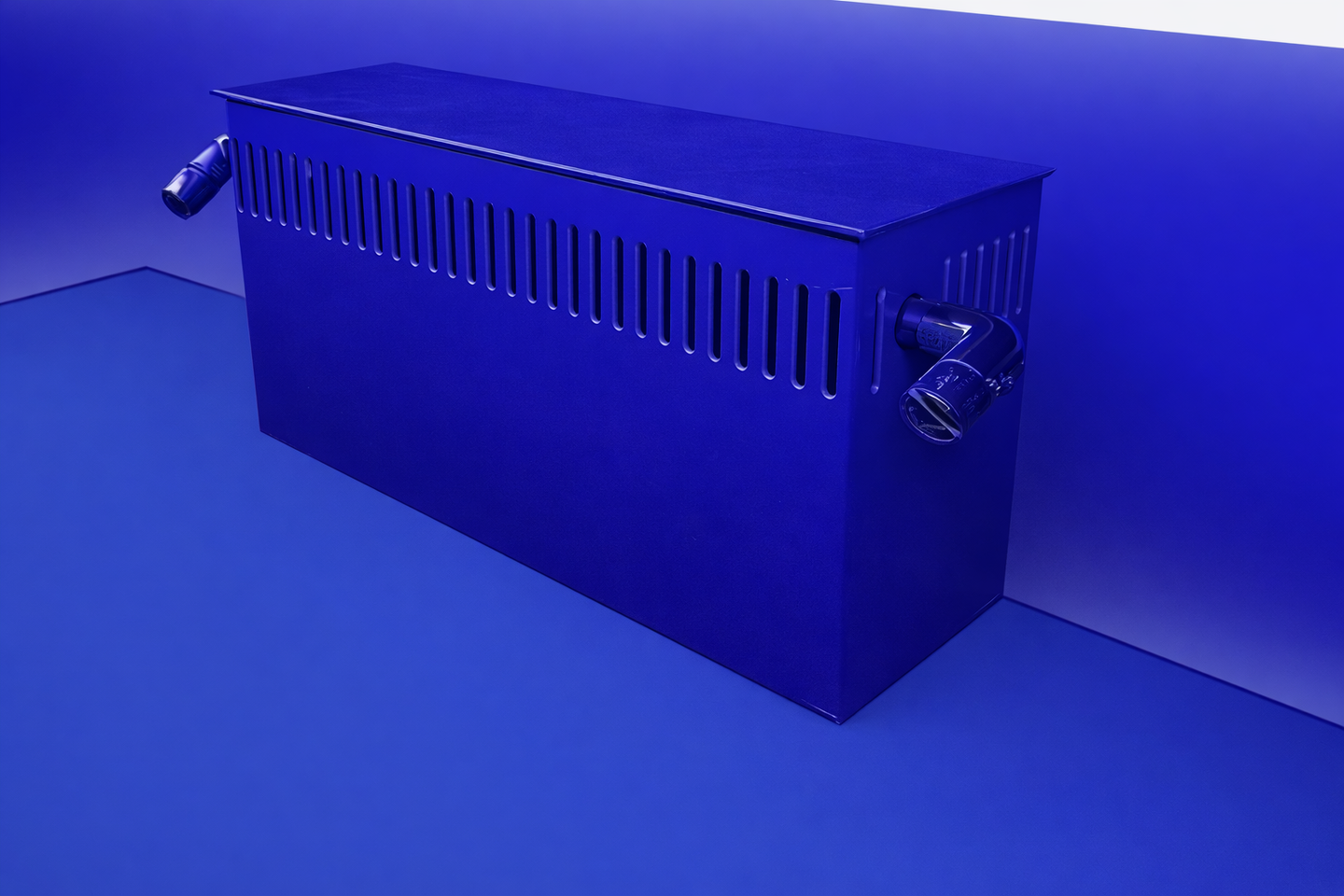

Overflow Box at Each Tier

Every level includes a dedicated overflow box with dual overflow holes for efficient, balanced water movement.

Integrated Marine Lighting System

Primary Display Lighting

(2) 48″ double LED fixtures per rack
Spectrum: 430 nm blue + 14K white
Frosted lens design minimizes glare while enhancing livestock coloration
Blue LEDs illuminate black backgrounds with a rich blue hue

LED Specifications

120 LEDs per tube / 240 total LEDs
120 Blue + 120 14K White LEDs
Lumens: 28 LM per LED | 6,600 total lumens
Power Consumption: 48 watts

Sump Lighting

Single 6K LED sump light included for visibility during maintenance.

Available Options & Configurations

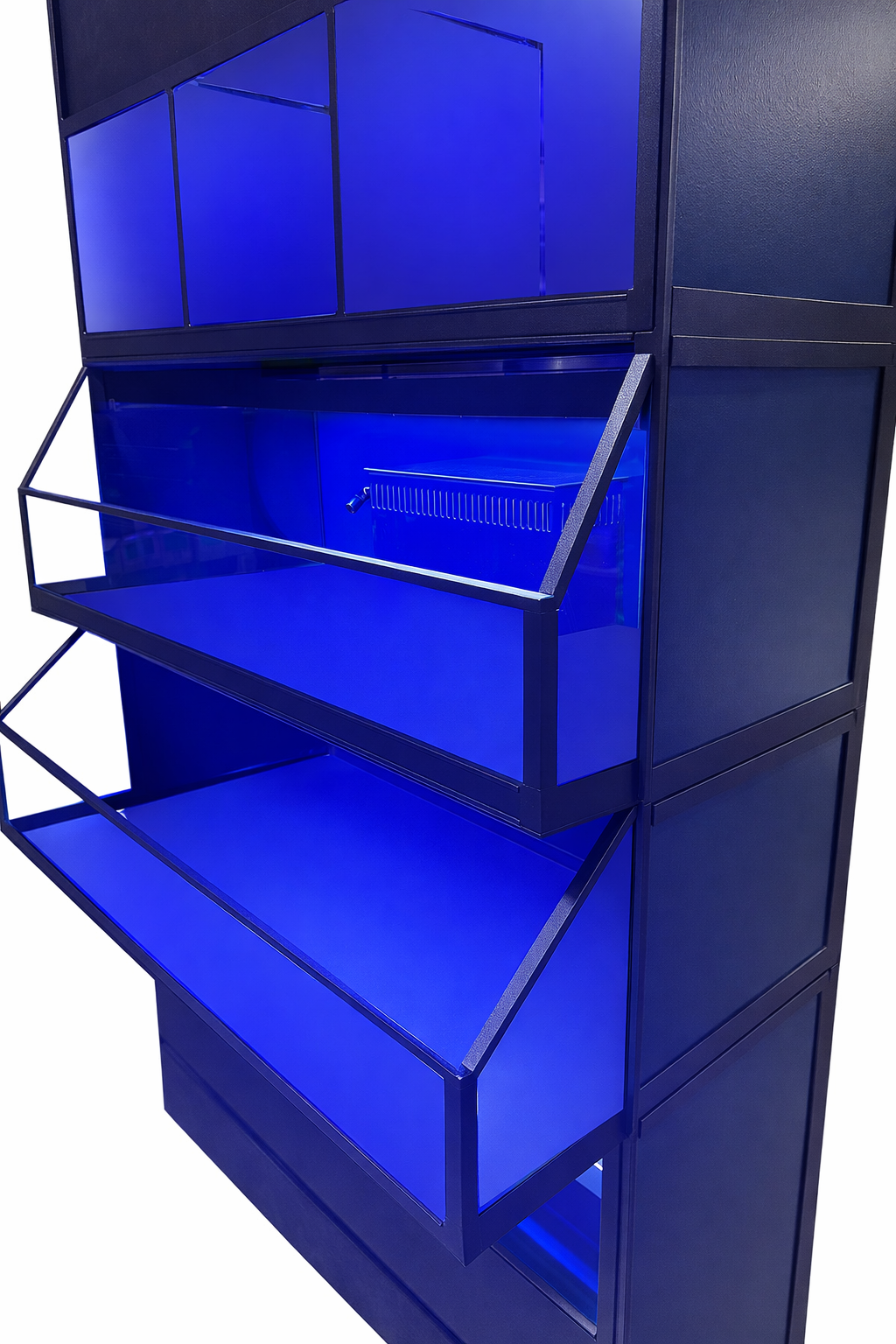

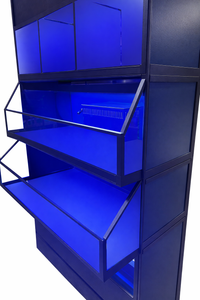

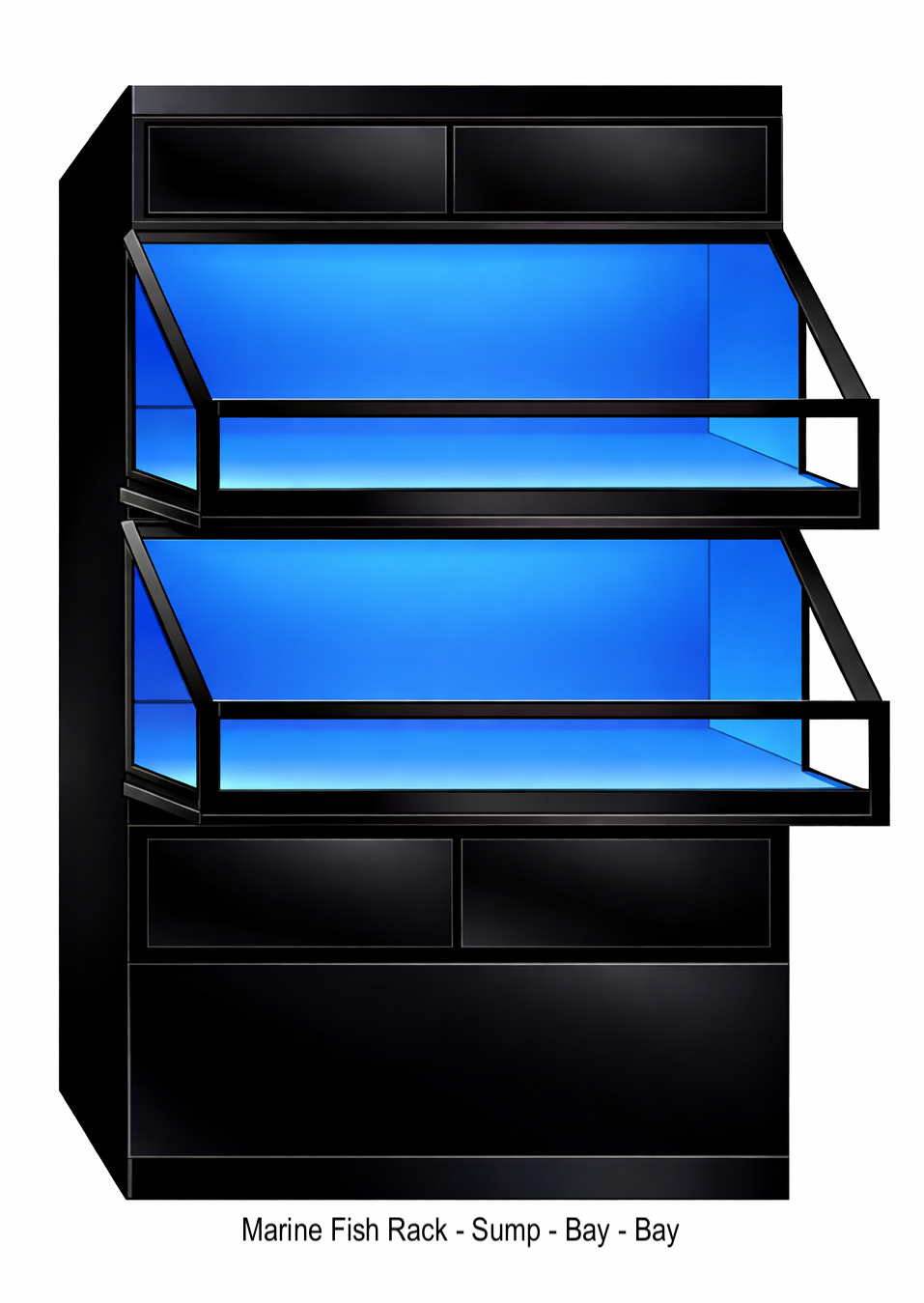

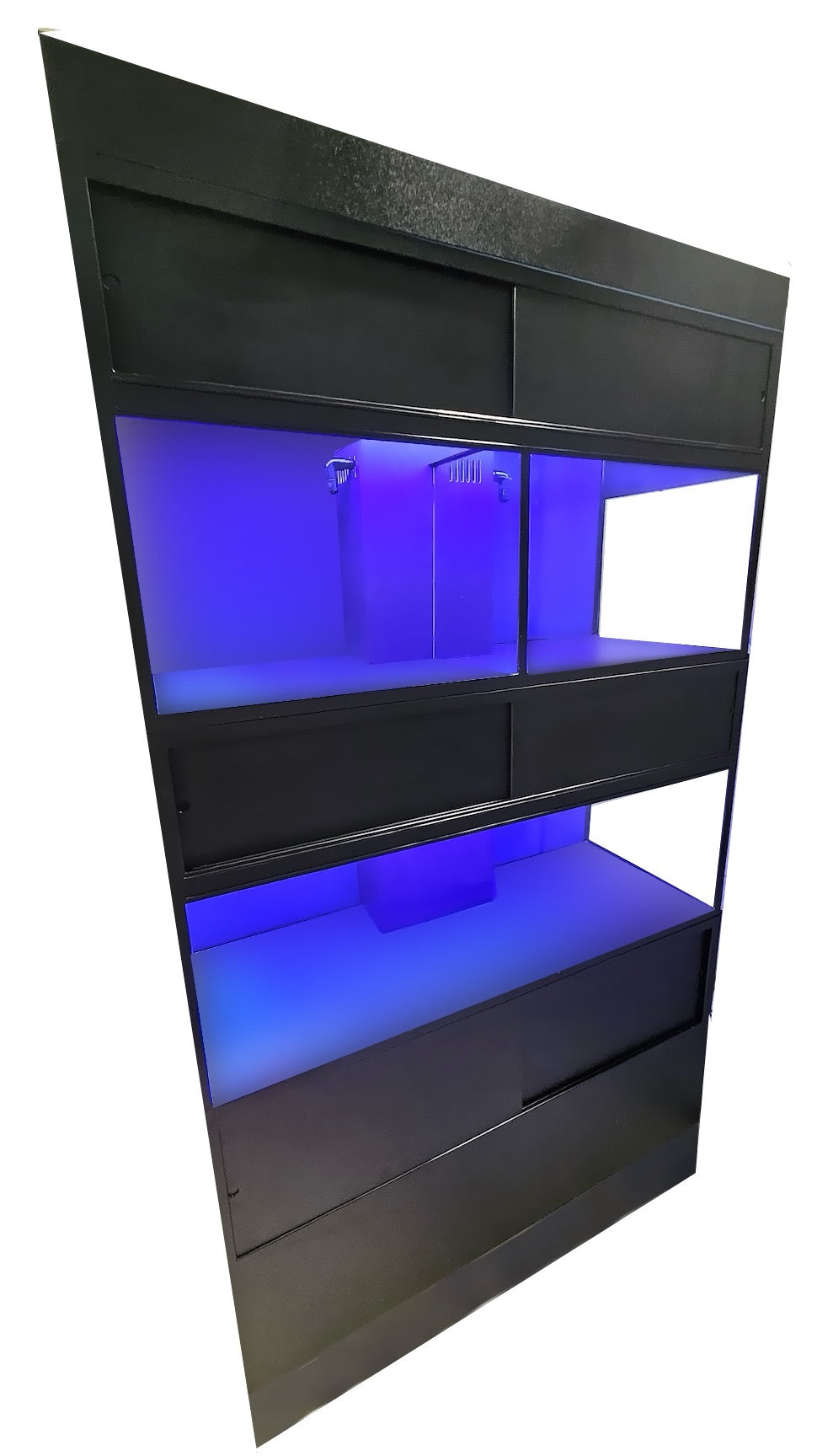

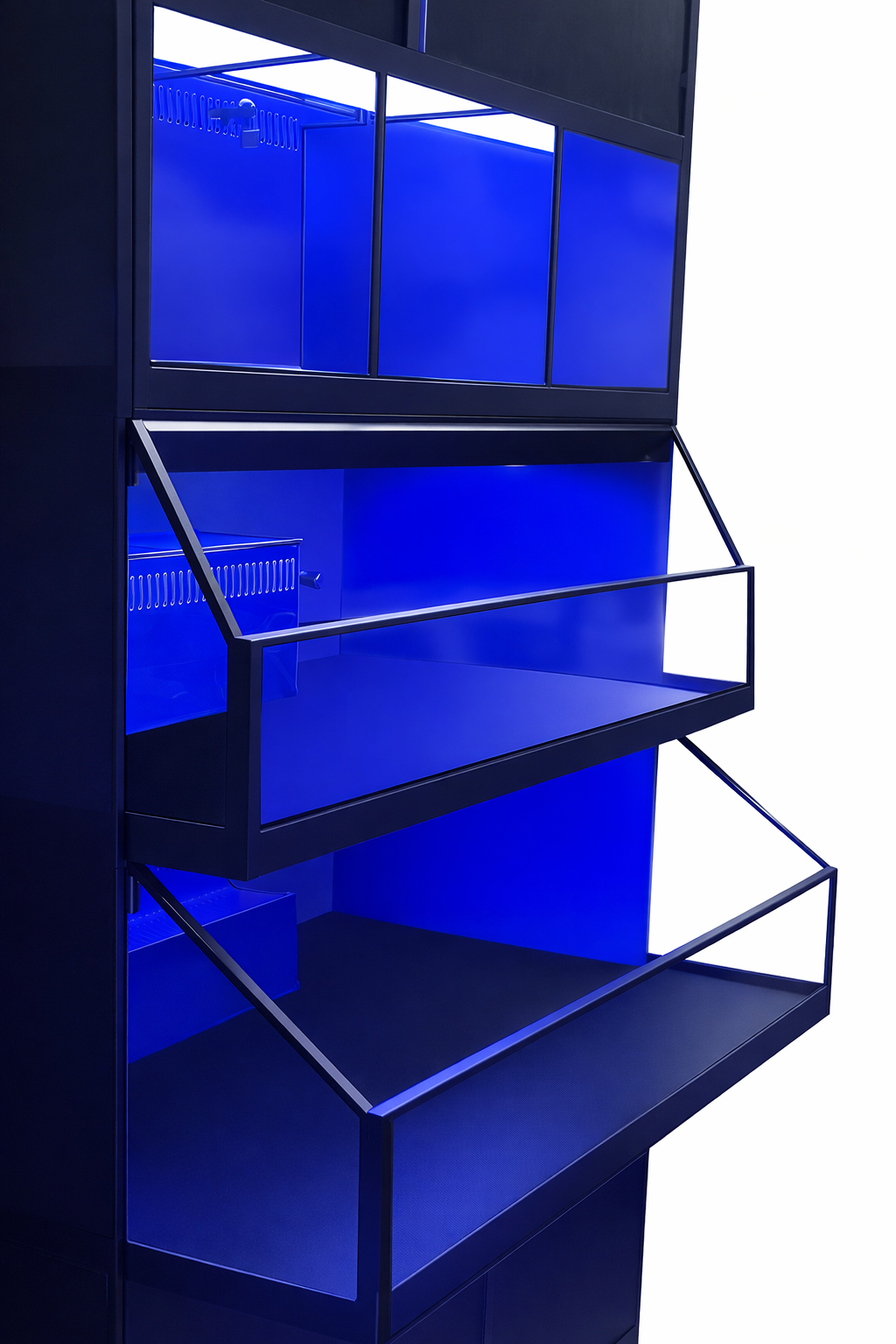

Bay-Style Top Tier Option

Available for the top two tiers, ideal for corals, live rock, and frag systems.

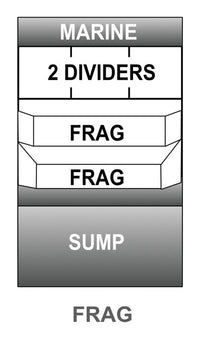

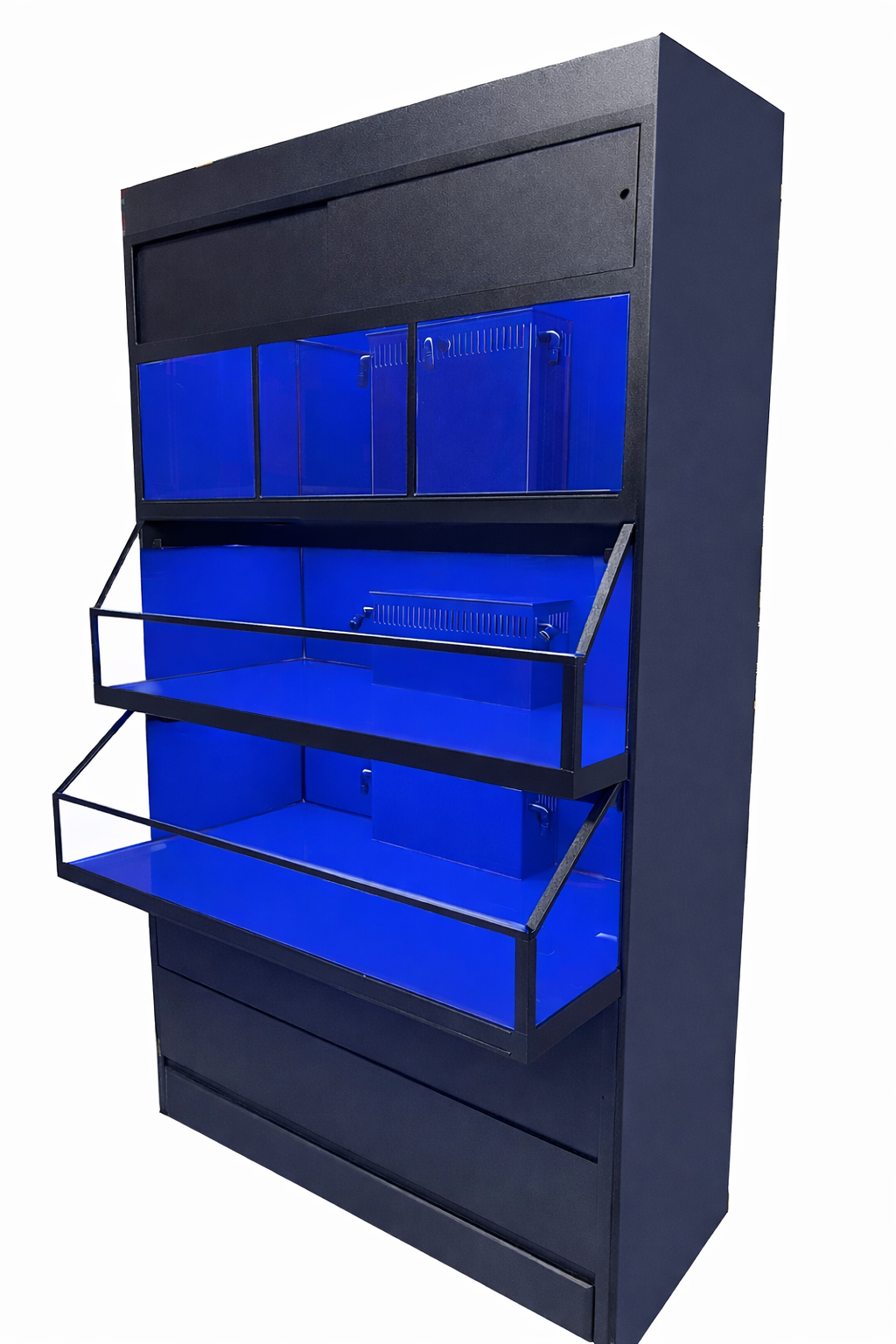

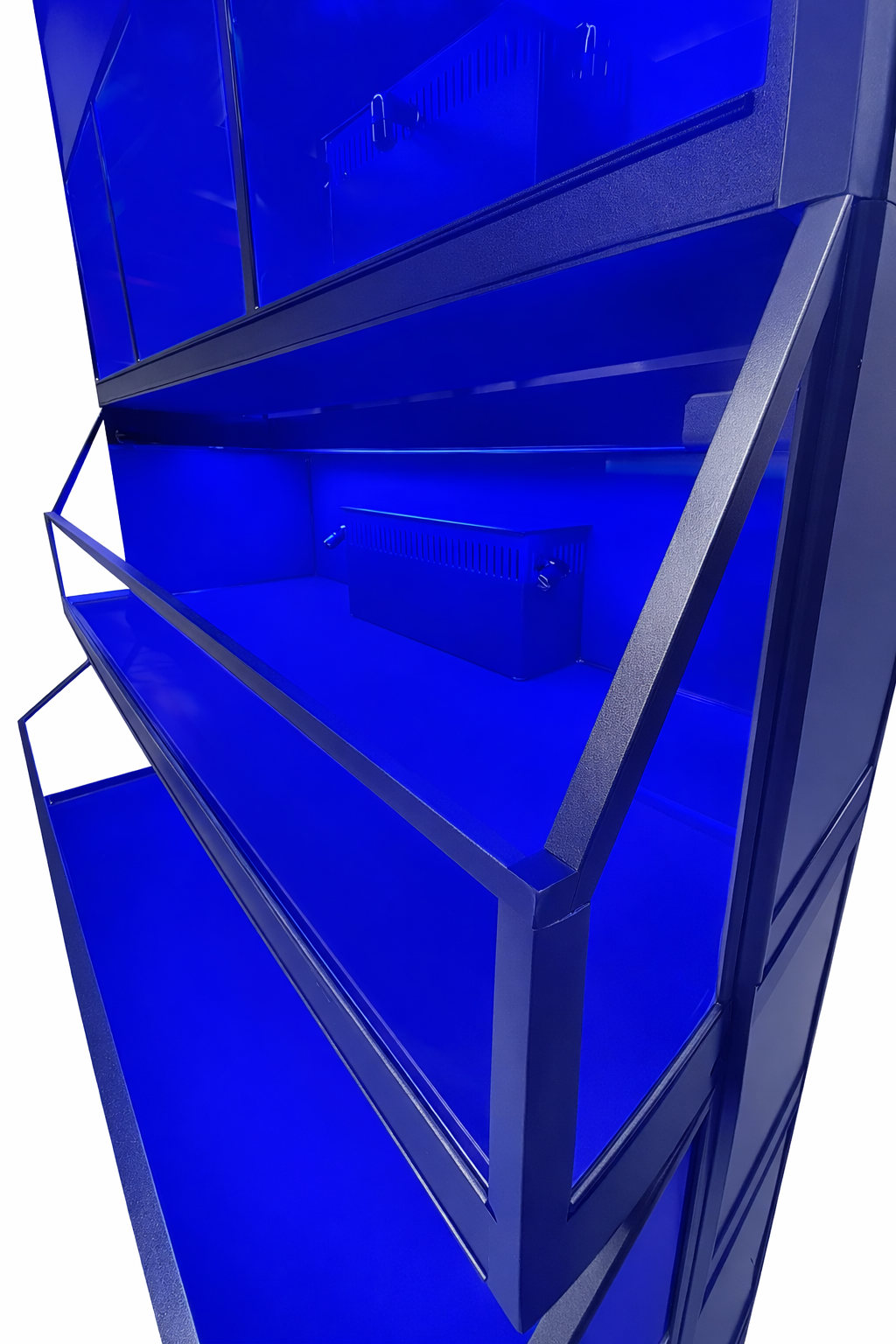

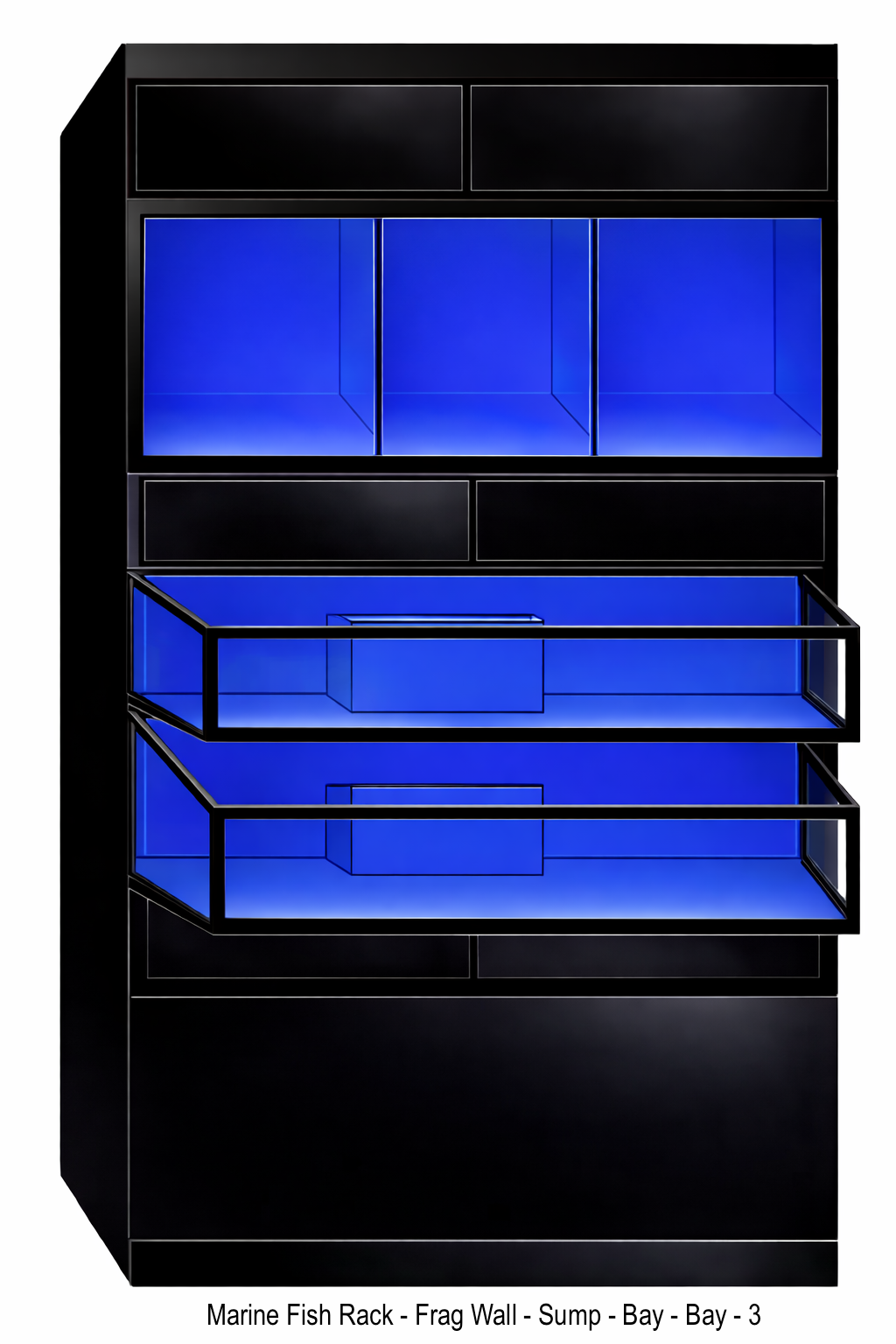

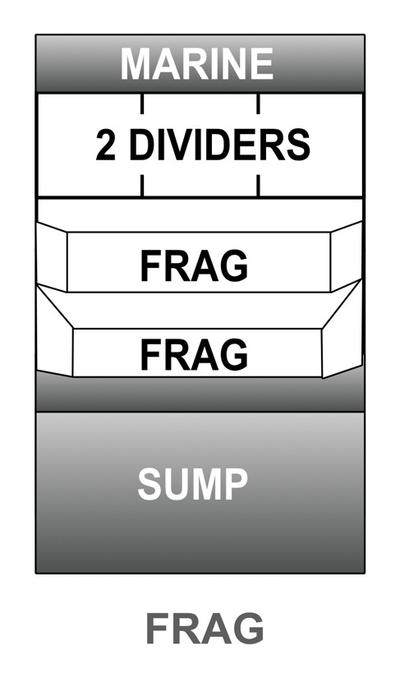

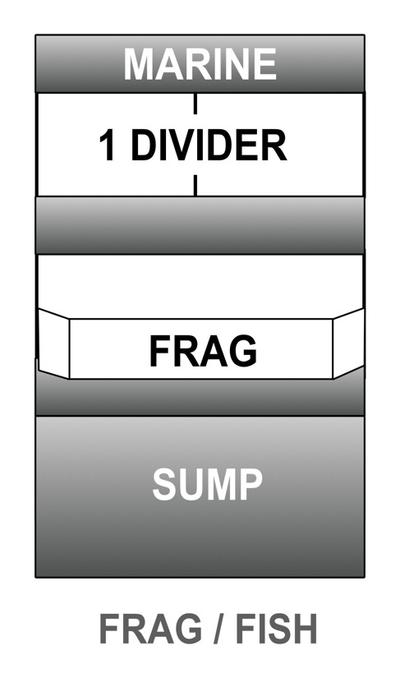

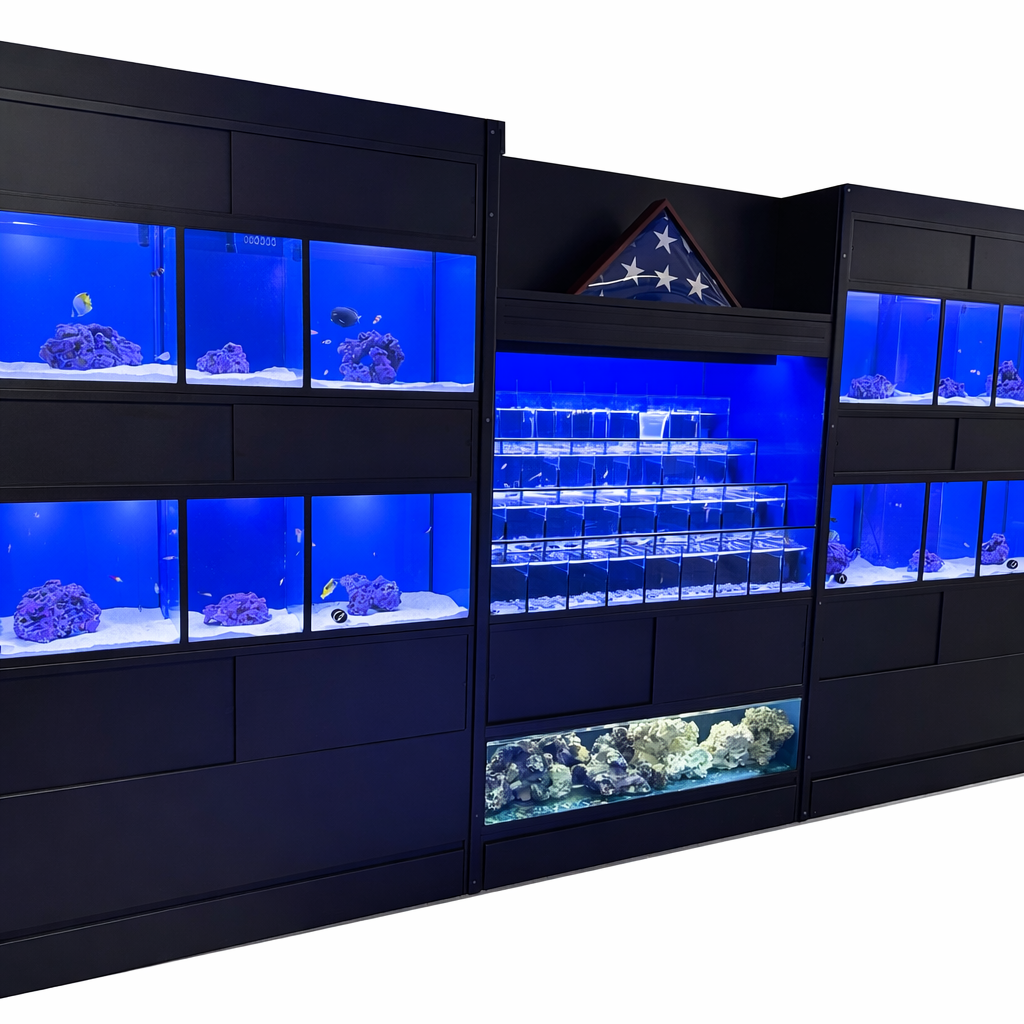

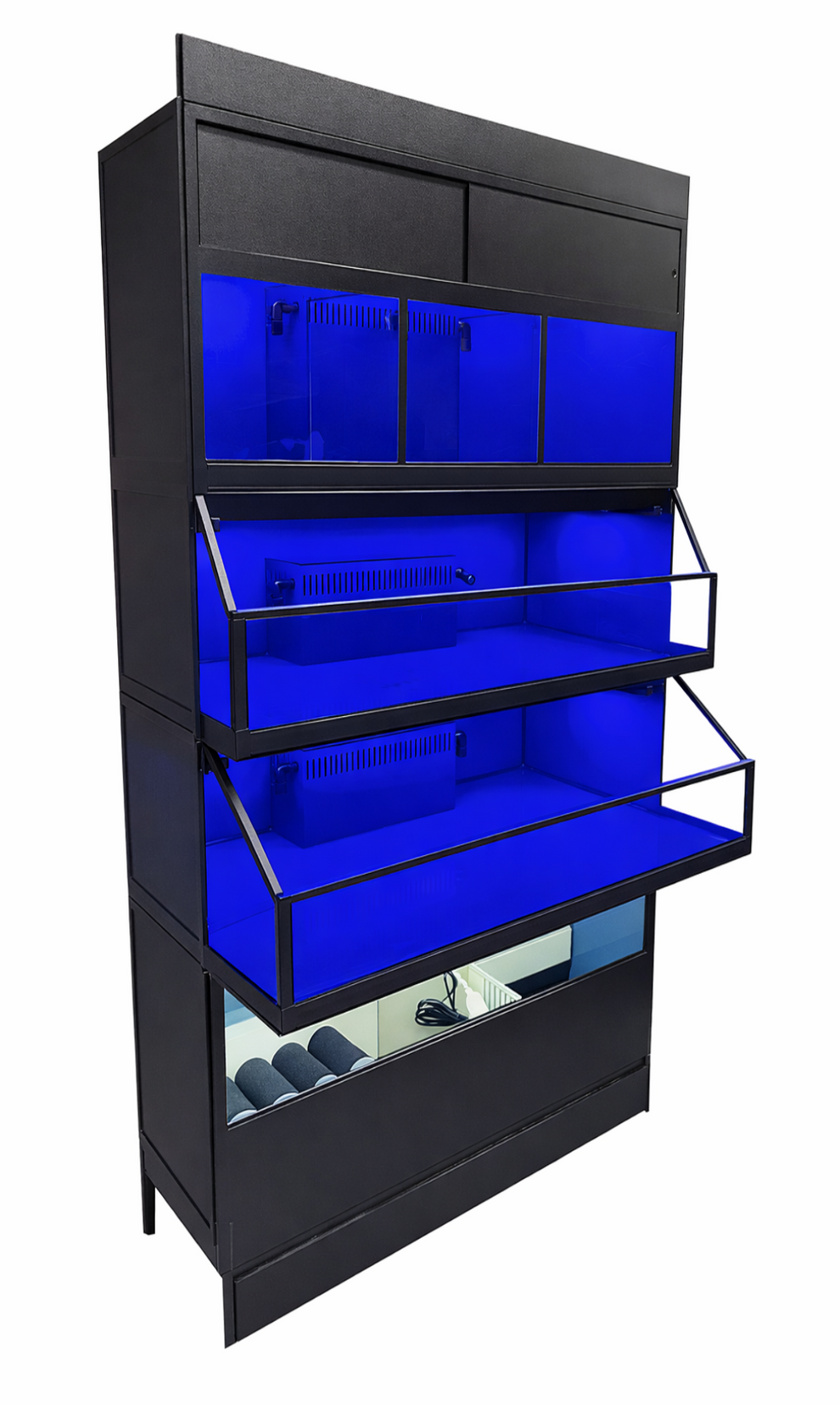

Coral Frag Wall Configuration

4-Tier Rack System featuring:

Bottom sump
Two bay-style middle tiers
Divided top tier for maximum frag capacity

Optional Add-On Items

Water Management & Control Service Stations
End Covers for finished retail presentation

Biological Load Capacity & System Design INFO

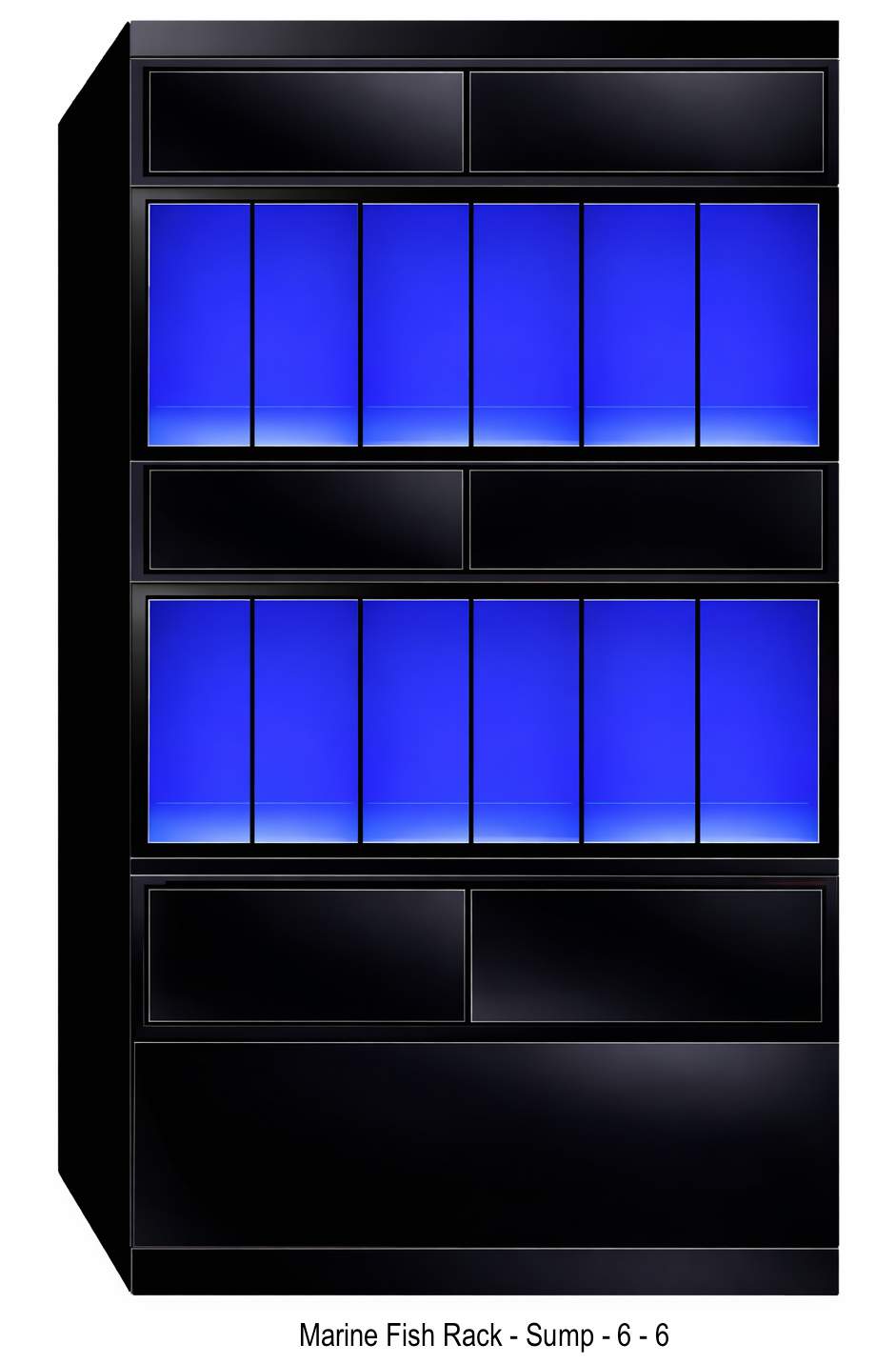

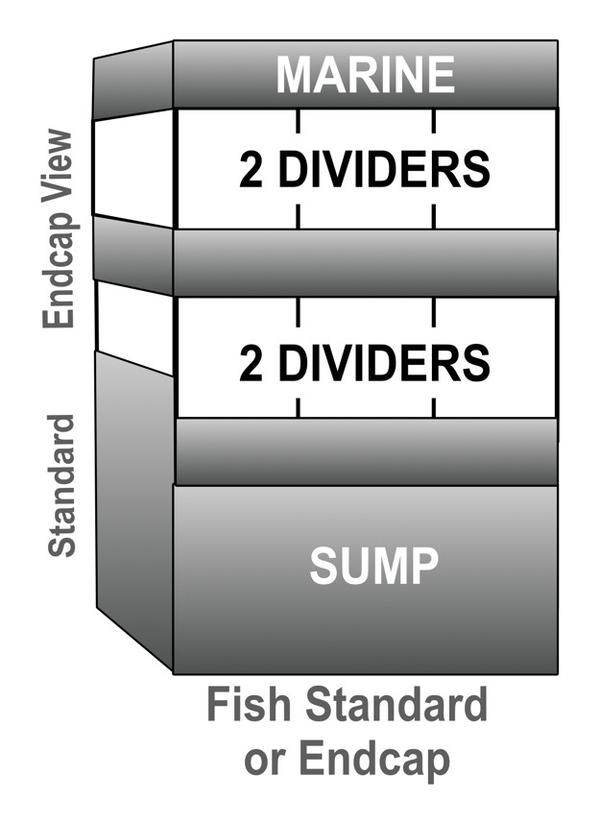

TIER OPTIONS

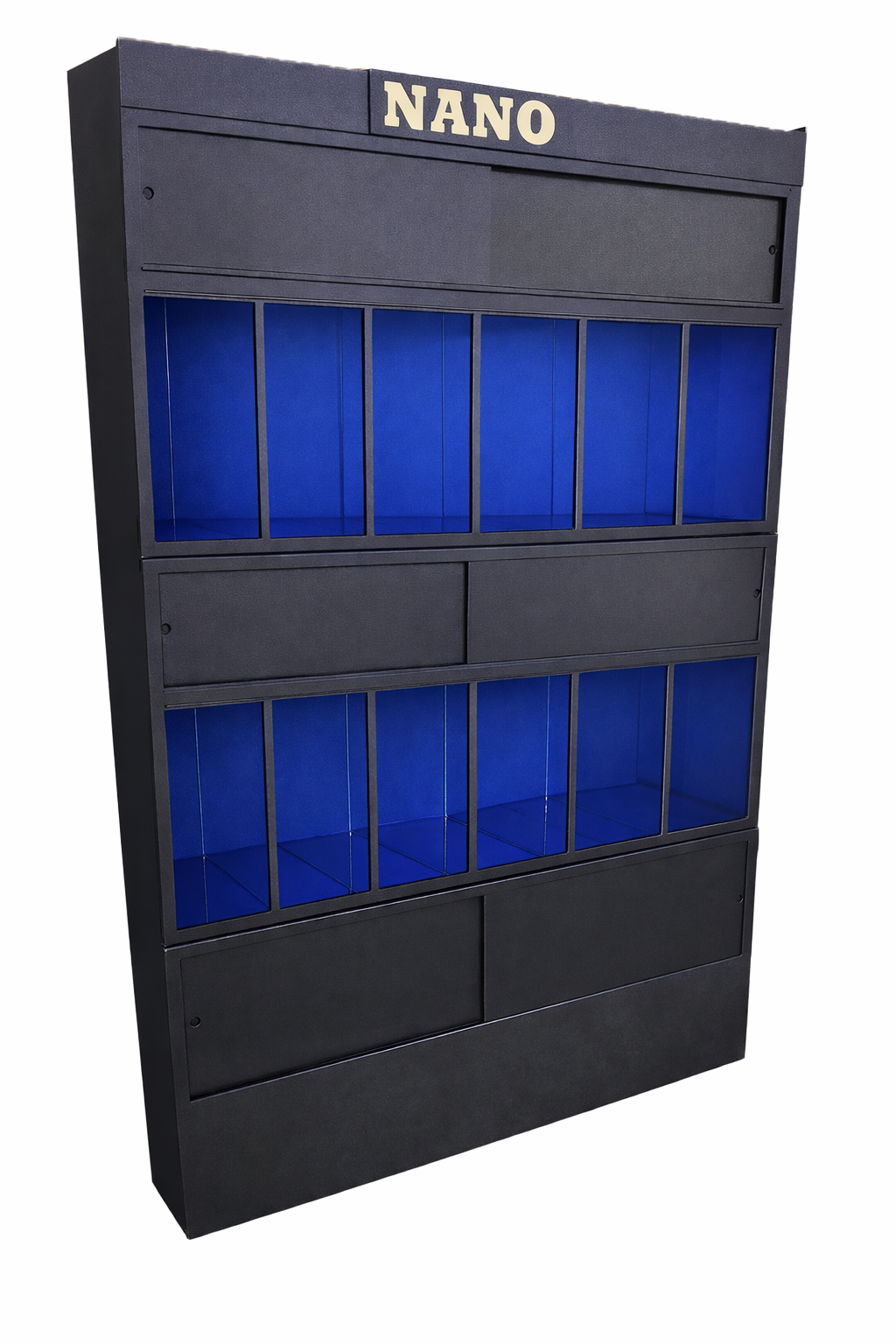

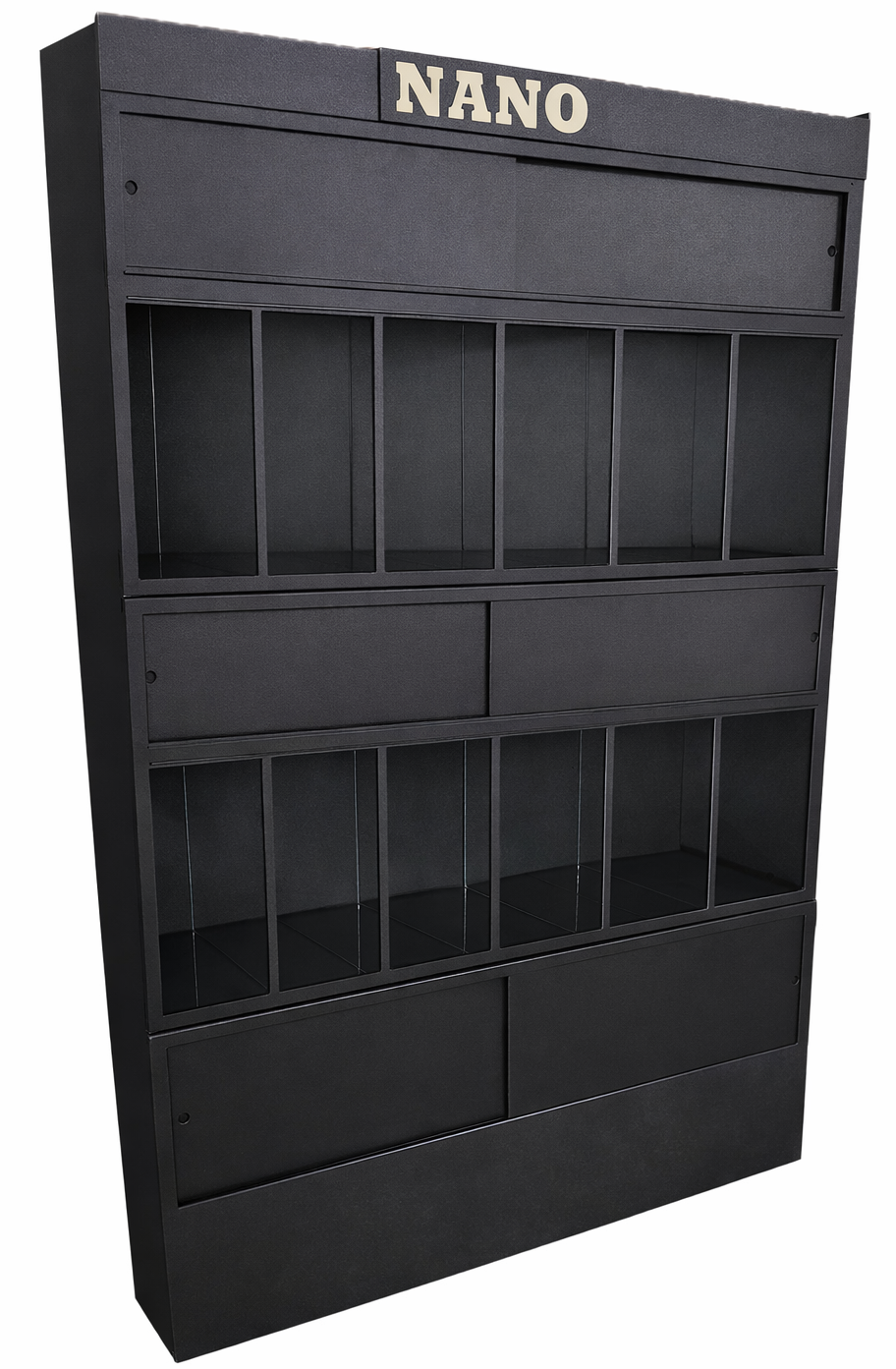

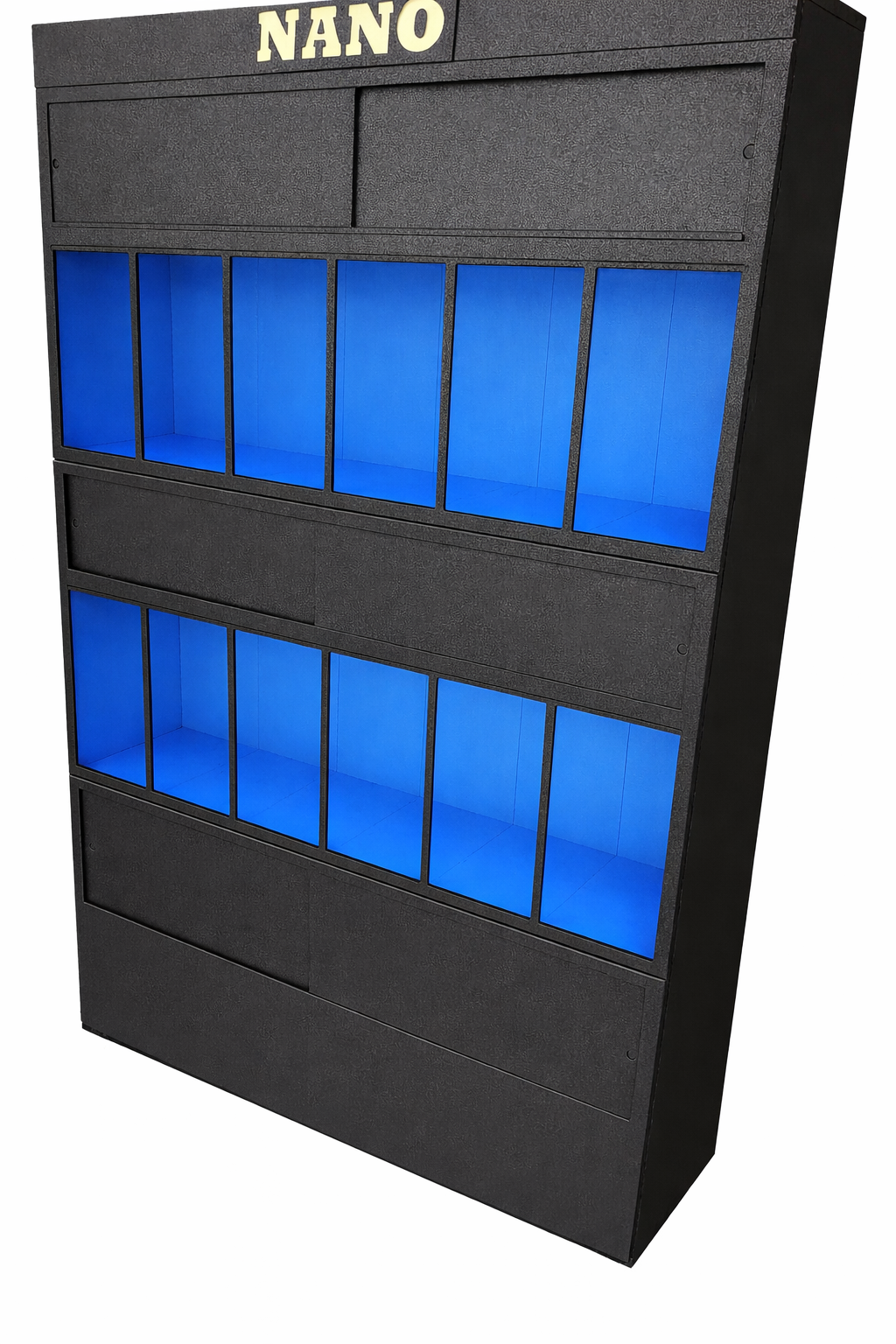

Tier divisions are customized for each order, allowing 1, 2, 3, 4, or 6 individual spaces per tier.
COLOR OPTIONS

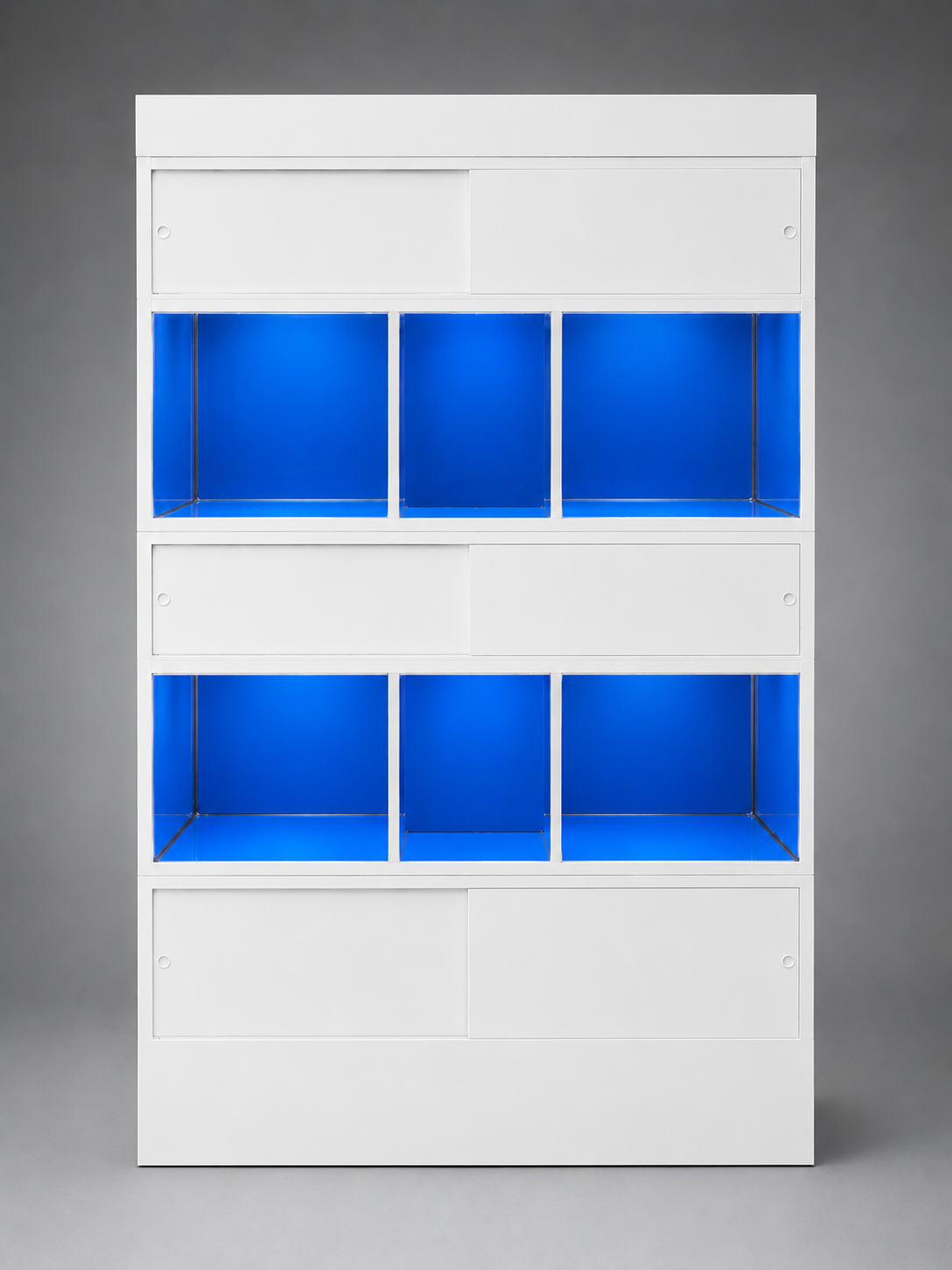

EXTERIOR
Black | Beige | White
INTERIOR
Black | Blue

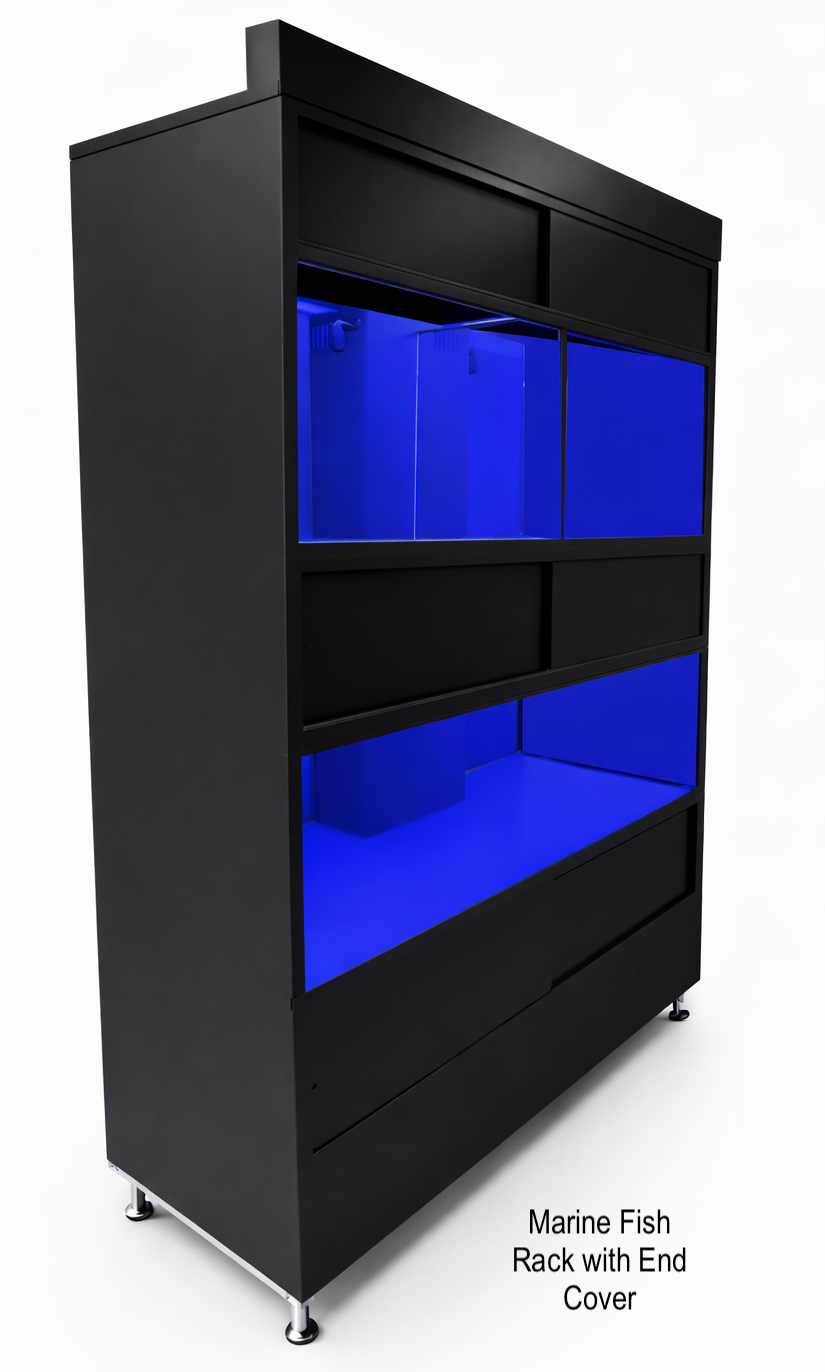

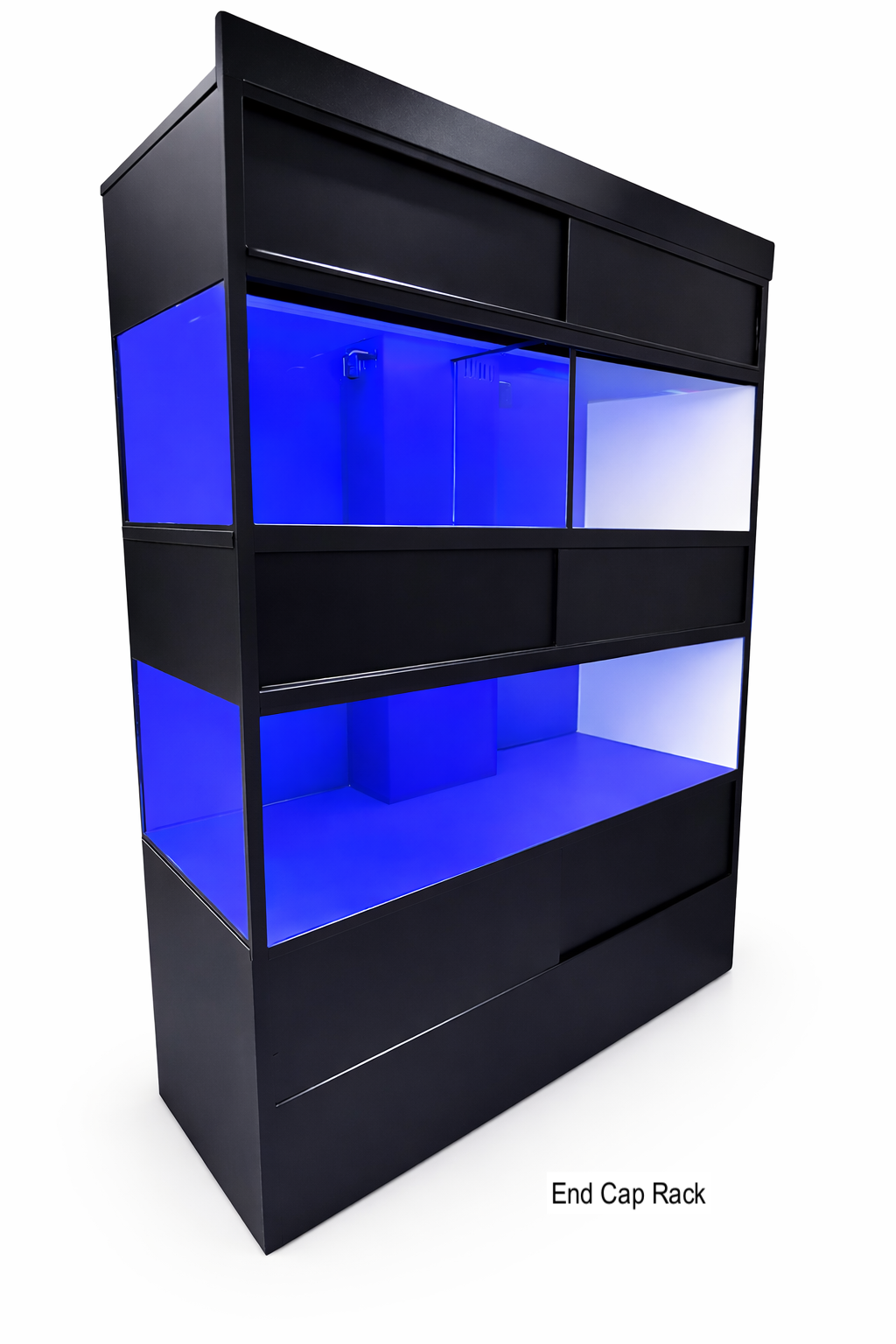

END COVERS

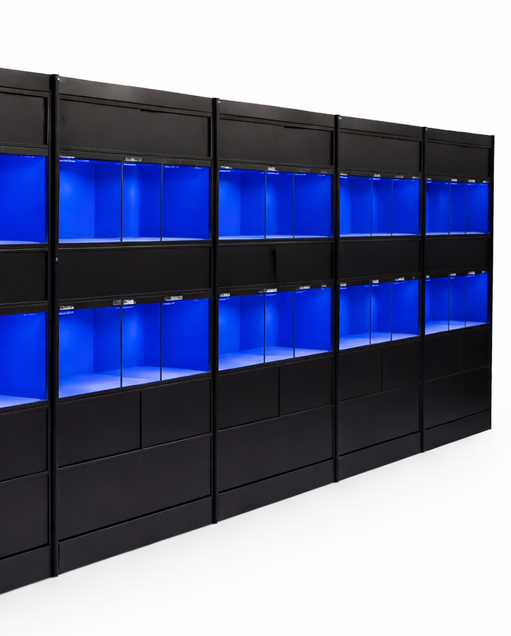

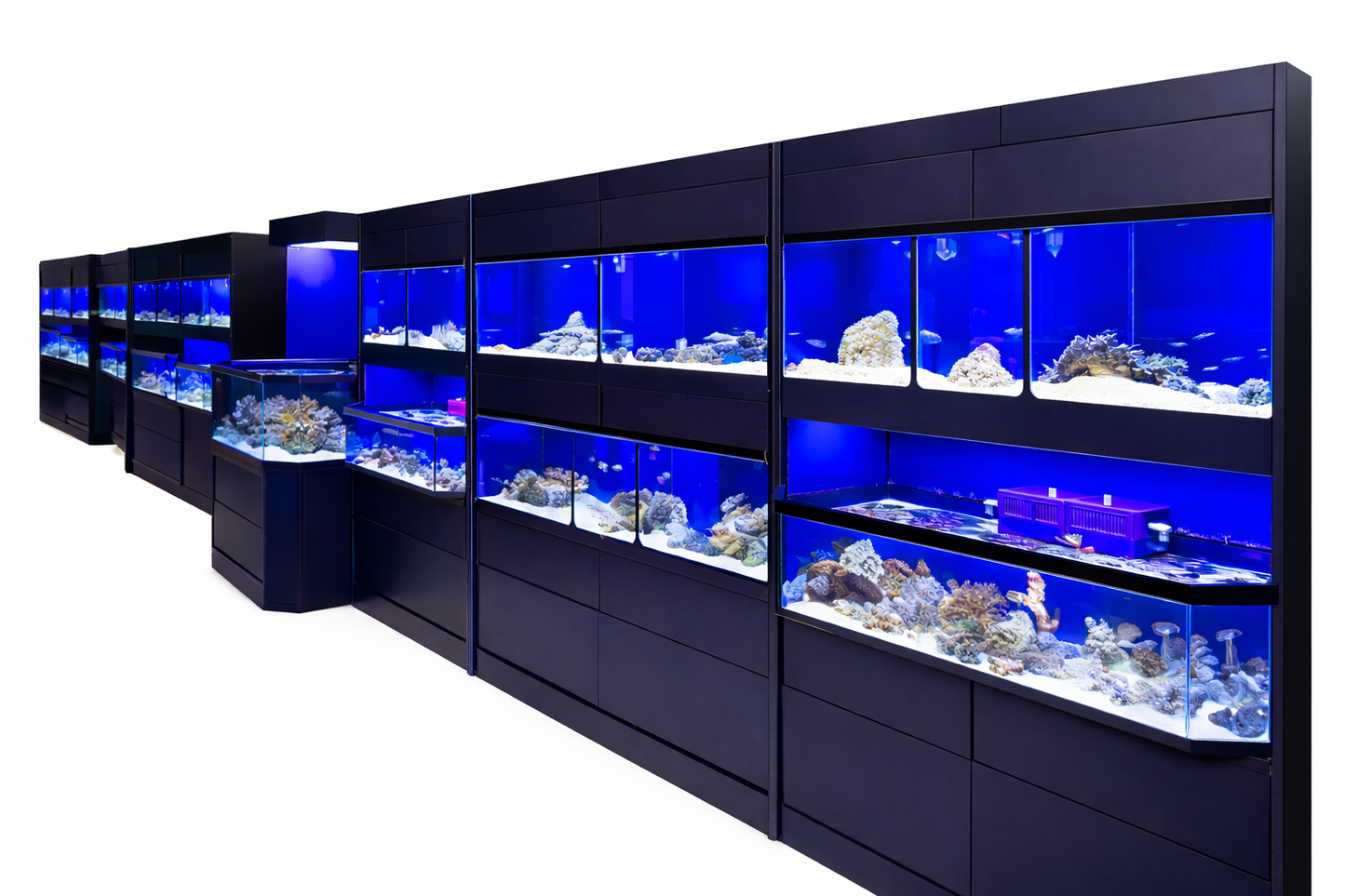

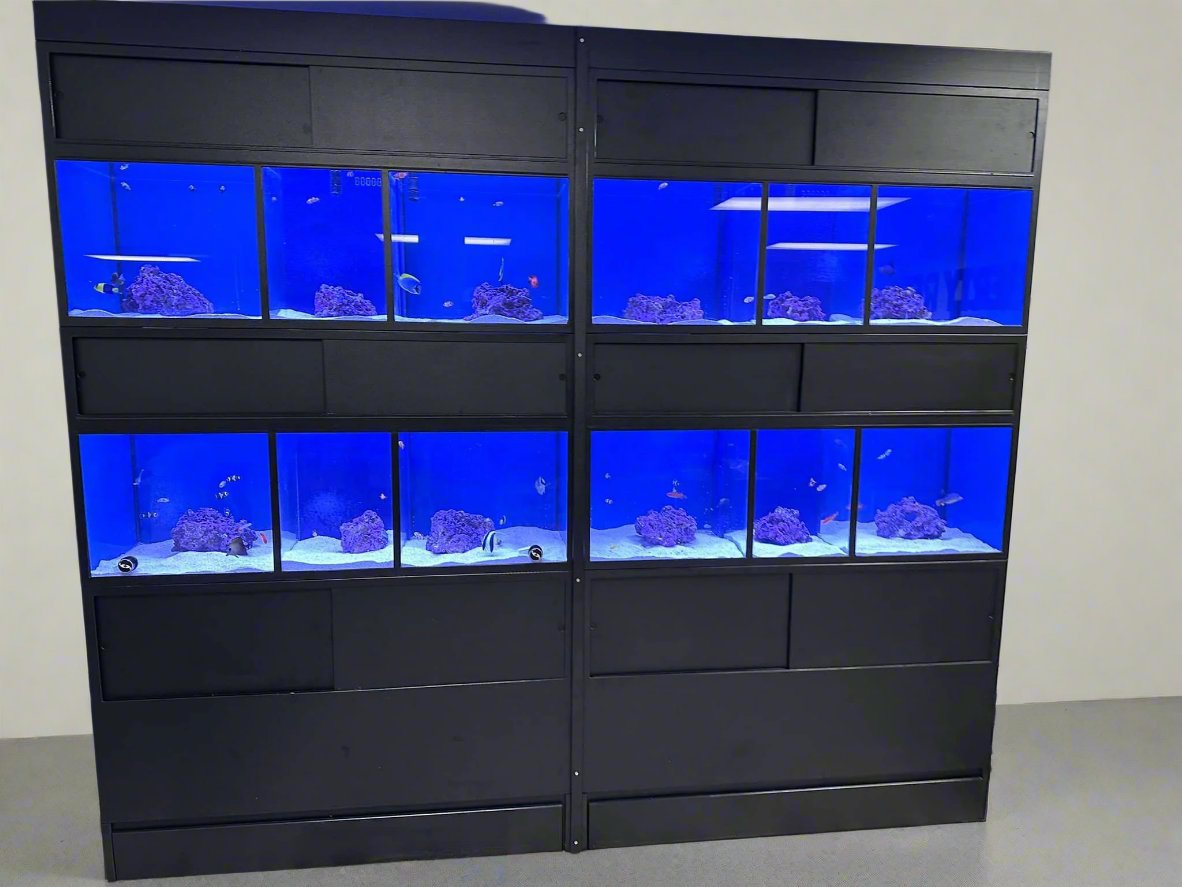

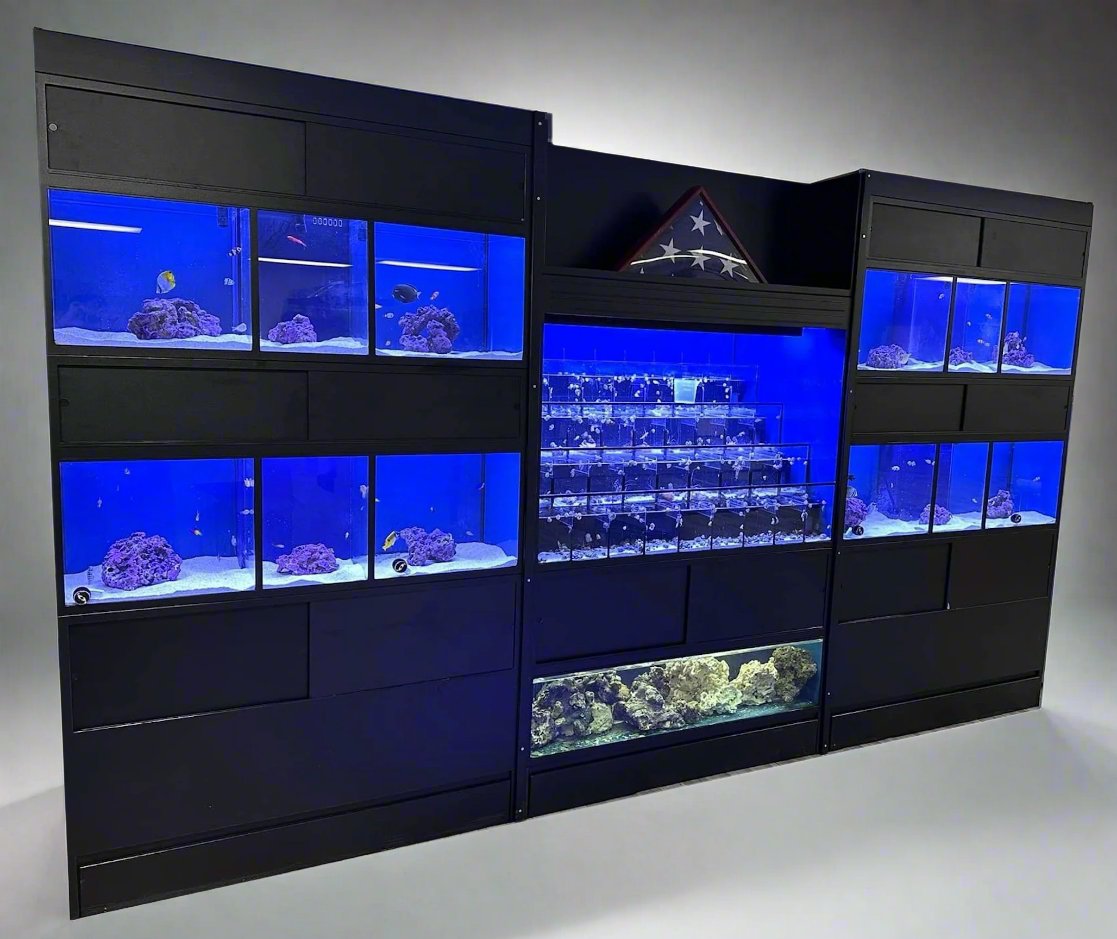

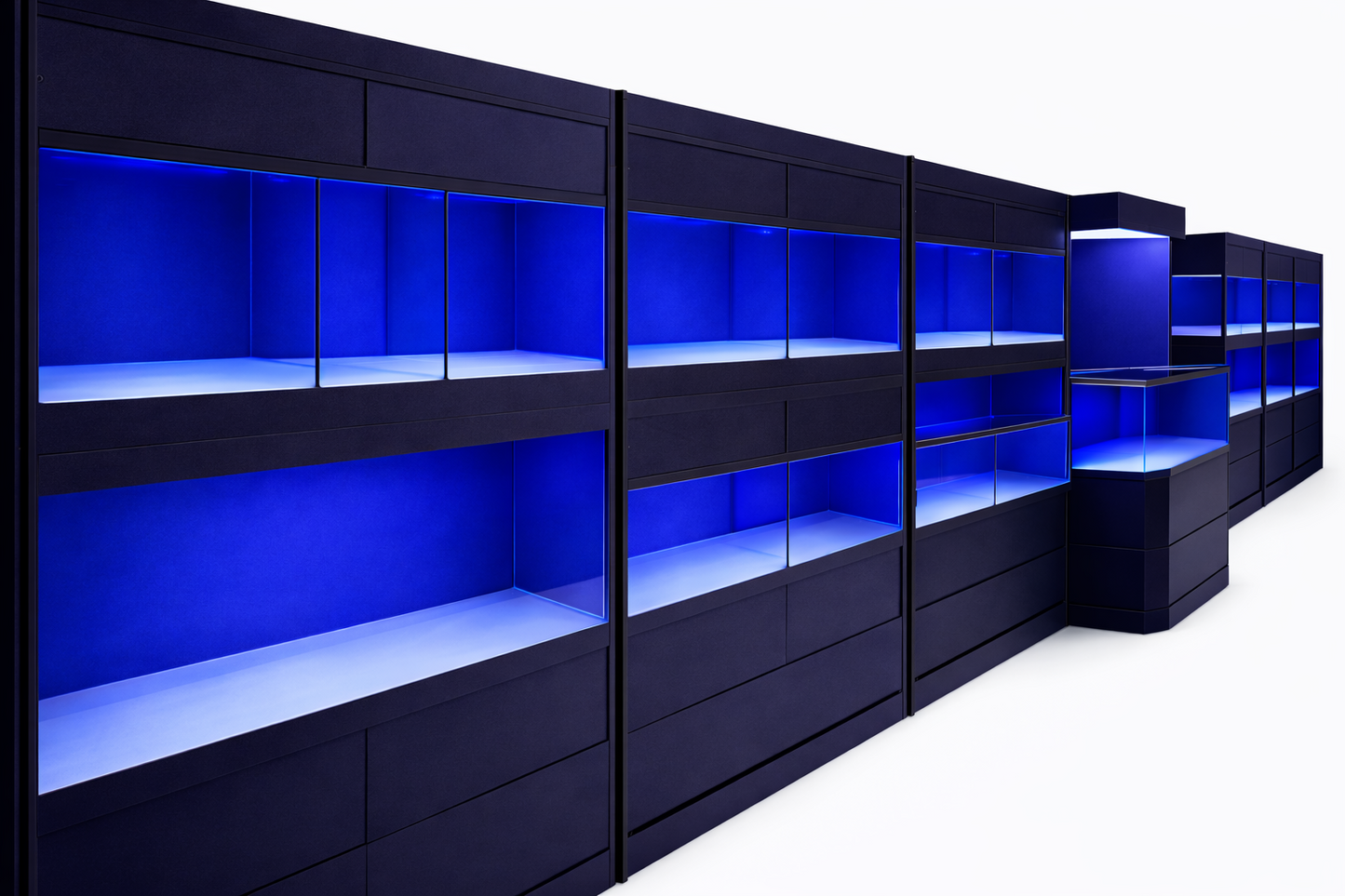

All of our racks are designed to be placed beside each other,  creating a seamless and continues appearance. End Covers are Optional to cover unfinished ends.
MANUFACTURING
Glass enclosures with ABS exteriors, supported by galvanized steel leveling stands. Designed, manufactured, and assembled in the USA using primarily U.S.-sourced materials.
INSTALLATION and MAINTENANCE
Our racks are designed for DIY setup and long-term, low-effort operation, keeping routine maintenance to a minimum.
PRICING
Email us at sales@dasaquariums.com to request a full price list or a no-obligation estimate. Estimates will include lead times, freight costs, payment terms, and available financing.
